Stihl FS250.0 R - Crankcase, Cylinder - Parts Diagram

Name: Stihl FS250.0 R - Crankcase, Cylinder - Parts Diagram
SKU: fs250_0_r_crankcase_cylinder-group
Price: 0.6 GBP
Availability: InStock

Part No. fs250_0_r_crankcase_cylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS250.0 R - Crankcase, Cylinder - Parts Diagram

Description

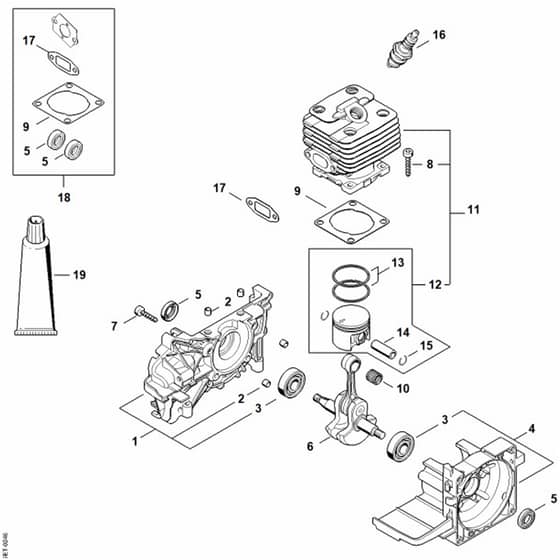

Stihl FS250.0 R - Crankcase, Cylinder - Parts Diagram

	Part No.	Details
2	ST0000 988 8600 In stock	Sleeve	£1.19 £0.99
3	ST9503 003 0242 Available to backorder	Grooved ball bearing 6201	£14.80 £12.33
4	ST4134 020 2900 Available to backorder	Crankcase (Contains 3)	£118.80 £99.00
5	ST9640 003 1195 In stock	Oil seal 12x22x5	£5.56 £4.63
7	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.95 £0.79
8	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.08 £0.90
9	ST4134 029 2300 Available to backorder	Cylinder gasket	£3.19 £2.66
10	ST9512 003 2250 Available to backorder	Needle cage 10x13x12.5	£7.40 £6.17
11	ST4134 020 1219 Available to backorder	Cylinder with piston Ø 40 mm (Contains 8 + 12 - 15)	£186.96 £155.80
13	ST1123 034 3005 Available to backorder	Piston ring Ø 40x1.2 mm	£7.61 £6.34
14	ST4119 034 1500 Available to backorder	Piston pin 10x6.5x28	£7.64 £6.37
15	ST9463 650 1000 In stock	Snap ring 10	£0.72 £0.60
16	2134 In stock	Spark plug NGK BPMR7A	£2.80 £2.33
17	ST4134 149 0600 In stock	Muffler gasket	£1.79 £1.49
