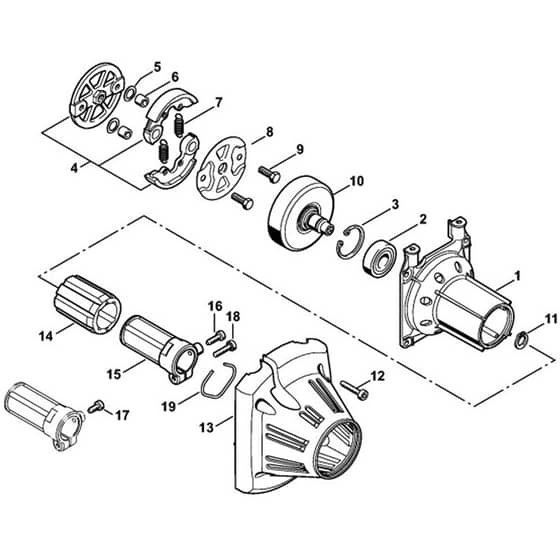

Stihl FS250.0 R - Clutch Housing - Parts Diagram

Description

	Part No.	Details
1	ST4134 160 0601 Available to backorder	Clutch housing (Contains 45718)	£47.42 £39.52
2	ST9503 003 7450 Available to backorder	Grooved ball bearing DIN625-6202-2RS	£16.22 £13.52
3	ST9456 621 3860 Available to backorder	Circlip 35x1.5	£1.32 £1.10
4	ST4128 160 2001 Available to backorder	Clutch (Contains 5 - 9)	£59.96 £49.97
5	ST0000 958 1000 In stock	Washer 16x10x0.5	£1.08 £0.90
6	ST0000 961 0608 In stock	Ring	£1.76 £1.47
7	ST0000 997 5519 In stock	Tension spring	£1.10 £0.92
8	ST4128 162 1000 Available to backorder	Cover washer	£5.84 £4.87
9	ST0000 951 0606 Available to backorder	Hexagon head screw	£1.54 £1.28
10	ST4134 160 2900 Available to backorder	Clutch drum	£33.00 £27.50
11	ST9455 621 1520 In stock	Circlips DIN471-15x1	£0.88 £0.73
12	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.00 £0.83
13	ST4134 160 0400 Available to backorder	Clutch shroud	£19.24 £16.03
14	ST4137 791 9300 Available to backorder	Rubber insert	£9.90 £8.25
15	ST4137 790 7202 Available to backorder	Sleeve (Contains 16)	£18.44 £15.37
16	ST9075 478 4115 In stock	Pan head self-tapping screw IS-D5x16	£0.88 £0.73
18	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.88 £0.73
19	ST9457 621 4481 Available to backorder	Circlip	£1.66 £1.38
