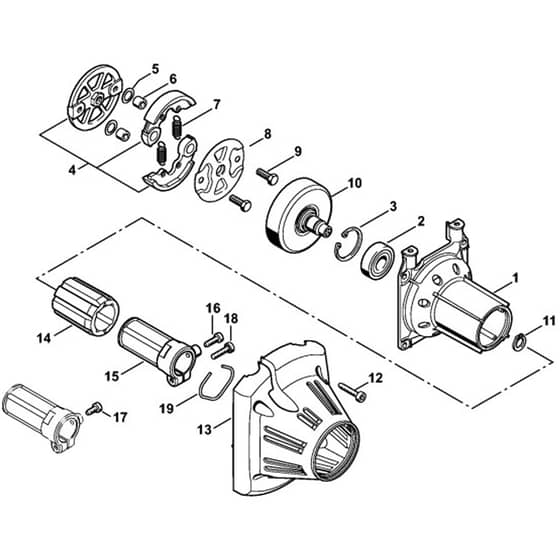

Stihl FS250.0 - Clutch Housing - Parts Diagram

Part No. fs250_0_clutch_housing-group

Description

	Part No.	Details
1	ST4134 160 0601 Available to backorder	Clutch housing (Contains 45718)	£49.06 £40.88
2	ST9503 003 7450 Available to backorder	Grooved ball bearing DIN625-6202-2RS	£15.46 £12.88
3	ST9456 621 3860 Available to backorder	Circlip 35x1.5	£1.37 £1.14
4	ST4128 160 2001 Available to backorder	Clutch (Contains 5 - 9)	£62.03 £51.69
5	ST0000 958 1000 In stock	Washer 16x10x0.5	£1.19 £0.99
6	ST0000 961 0608 In stock	Ring	£1.90 £1.58
7	ST0000 997 5519 In stock	Tension spring	£1.19 £0.99
8	ST4128 162 1000 Available to backorder	Cover washer	£6.04 £5.03
9	ST0000 951 0606 Available to backorder	Hexagon head screw	£1.60 £1.33
10	ST4134 160 2900 Available to backorder	Clutch drum	£34.14 £28.45
11	ST9455 621 1520 In stock	Circlips DIN471-15x1	£0.95 £0.79
12	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.08 £0.90
13	ST4134 160 0400 Available to backorder	Clutch shroud	£19.91 £16.59
14	ST4137 791 9300 Available to backorder	Rubber insert	£10.24 £8.53
15	ST4137 790 7202 Available to backorder	Sleeve (Contains 16)	£19.08 £15.90
16	ST9075 478 4115 In stock	Pan head self-tapping screw IS-D5x16	£0.95 £0.79
17	ST9075 478 4095 In stock	Pan head self-tapping screw IS-D5x12	£0.80 £0.67
18	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.95 £0.79
19	ST9457 621 4481 In stock	Circlip	£1.79 £1.49
