Stihl FS250.0 - Carburetor 4134-22 - Parts Diagram

Description

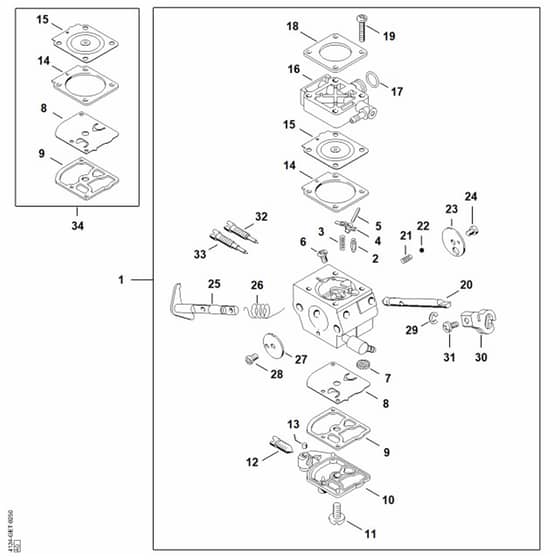

Stihl FS250.0 - Carburetor 4134-22 - Parts Diagram

	Part No.	Details
2	STZ000 018 Z000 Available to backorder	Inlet needle	£9.29 £9.29
3	ST4128 122 3000 Available to backorder	Spring	£2.40 £2.00
4	ST4229 121 5000 Available to backorder	Inlet control lever	£3.31 £2.76
5	ST1120 121 9200 Available to backorder	Spindle	£1.37 £1.14
6	ST1120 122 6600 Available to backorder	Collar screw	£4.32 £3.60
7	ST1120 121 7800 Available to backorder	Strainer	£3.41 £2.84
8	ST1129 121 4800 In stock	Pump diaphragm	£15.96 £13.30
9	ST1123 129 0905 In stock	Pump gasket	£2.48 £2.07
10	ST4134 121 0802 Available to backorder	End cover	£17.75 £14.79
11	ST1120 122 7800 Available to backorder	Oval head screw	£4.55 £3.79
13	ST1125 122 4200 Available to backorder	Clamp	£1.72 £1.43
14	ST4229 129 0901 In stock	Metering gasket	£2.28 £1.90
15	ST4180 121 4700 Available to backorder	Metering diaphragm	£17.42 £14.52
17	ST9646 945 0490 In stock	O-ring 7x1.5	£0.48 £0.40
18	ST4140 121 0800 Available to backorder	End cover	£17.75 £14.79
19	ST4149 122 7100 Available to backorder	Screw	£3.86 £3.22
20	ST4134 121 3000 Available to backorder	Choke shaft	£17.17 £14.31
21	ST4119 122 3002 Available to backorder	Spring	£2.40 £2.00
22	ST4119 122 4200 Available to backorder	Ball	£1.72 £1.43
23	ST4128 121 2900 Available to backorder	Choke shutter	£4.55 £3.79
24	ST1125 122 7403 In stock	Round head screw	£4.72 £3.93
28	ST1120 122 7400 Available to backorder	Round head screw	£4.55 £3.79
29	ST1120 122 9000 Available to backorder	E-clip	£2.15 £1.79
31	ST4132 122 6600 Available to backorder	Collar screw	£4.55 £3.79
34	ST4229 007 1060 In stock	Kit (Contains 8 + 9 + 14 + 15)	£31.73 £26.44
