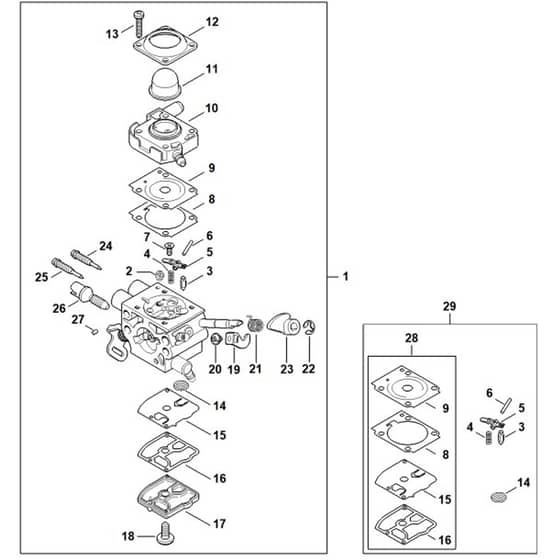

Stihl FS240.0 R - Carburetor 4147-25 - Parts Diagram

Name: Stihl FS240.0 R - Carburetor 4147-25 - Parts Diagram
SKU: fs240_0_r_carburetor_4147_25-group
Price: 0.92 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS240.0 R - Carburetor 4147-25 - Parts Diagram

Description

Stihl FS240.0 R - Carburetor 4147-25 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4147 120 0625 Available to backorder	Carburetor 4147/25 (Contains 2 - 27)	£150.70 £125.58
2	ST4137 121 5601 Available to backorder	Fixed jet 0.42	£9.68 £8.07
3	STZ000 018 Z000 Available to backorder	Inlet needle	£9.63 £9.63
4	ST4128 122 3000 Available to backorder	Spring	£2.32 £1.93
5	ST4229 121 5000 Available to backorder	Inlet control lever	£3.20 £2.67
6	ST1120 121 9200 Available to backorder	Spindle	£1.32 £1.10
7	ST0000 122 7101 In stock	Screw	Was £4.40 £3.67 Special Price £3.12 £2.60
8	ST4147 129 0907 Available to backorder	Gasket	£2.20 £1.83
9	STZ010 015 A006 Available to backorder	Metering diaphragm assy	£16.84 £14.03
10	STZ010 056 A011 Available to backorder	Base primer assy	£34.66 £28.88
11	ST4147 121 2702 Available to backorder	Cap	£5.62 £4.68
12	ST4147 121 0800 Available to backorder	End cover	£17.16 £14.30
13	ST4140 122 7100 Available to backorder	Screw	£4.18 £3.48
14	ST1120 121 7800 Available to backorder	Strainer	£3.30 £2.75
15	ST1129 121 4800 In stock	Pump diaphragm	£14.96 £12.47
16	ST1123 129 0905 In stock	Pump gasket	£2.20 £1.83
17	ST1139 121 0800 Available to backorder	End cover	£17.16 £14.30
18	ST1120 122 7800 Available to backorder	Oval head screw	£4.40 £3.67
19	ST4147 121 3501 Available to backorder	Throttle lever	£6.50 £5.42
20	ST4132 122 6600 Available to backorder	Collar screw	£4.40 £3.67
21	ST4147 122 3201 Available to backorder	Torsion spring	£1.10 £0.92
22	ST4147 122 9001 Available to backorder	E-clip	£2.08 £1.73
23	ST4147 121 6605 Available to backorder	Lever	£2.42 £2.02
24	ST4147 122 6702 Available to backorder	High speed screw	£10.78 £8.98
25	ST4147 122 6802 Available to backorder	Low speed screw	£10.78 £8.98
26	STZ010 035 A000 Available to backorder	Idle speed screw assy	£10.78 £8.98
27	ST1125 122 4200 Available to backorder	Clamp	£1.66 £1.38
28	STZ010 003 K008 Available to backorder	Gasket & diaphragm kit (Contains 8 + 9 + 14 + 15)	£29.60 £24.67
29	STZ010 001 K009 Available to backorder	Carburetor Repair Kit RB-274 (Contains 3 - 5 + 8 + 9 + 14 + 15 + 28)	£56.52 £47.10
