Stihl FS235 - Gear Head - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

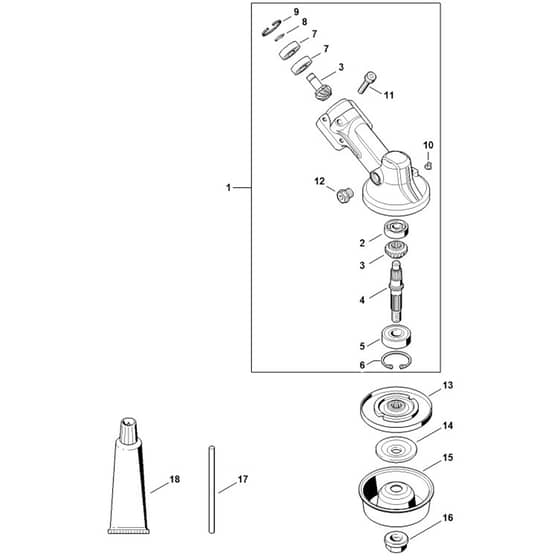

Stihl FS235 - Gear Head - Parts Diagram

Stihl FS235 - Gear Head - Parts Diagram

Description

Stihl FS235 - Gear Head - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST4180 640 0114 Available to backorder	Gear head (Contains 2 - 12)		£196.90 £164.08
	2		ST9503 003 0060 Available to backorder	Grooved ball bearing 629		£11.44 £9.53
	3		ST4180 640 7301 In stock	Set of pinions		£39.04 £32.53
	4		ST4180 642 0602 Available to backorder	Drive shaft		£36.86 £30.72
	5		ST9503 003 6440 In stock	Grooved ball bearing 6201-2RS		£7.70 £6.42
	6		ST9456 621 3600 In stock	Circlips 32x12		£1.22 £1.02
	7		ST9503 003 9853 Available to backorder	Grooved ball bearing 609-2Z		£11.98 £9.98
	8		ST9455 621 0750 In stock	Circlip 9x1		£0.72 £0.60
	9		ST9456 621 2660 In stock	Circlip 24x1.2		£1.00 £0.83
	10		ST4180 641 0800 Available to backorder	Retaining plug		£6.50 £5.42
	11		ST9022 341 1371 Available to backorder	Spline screw IS-M6x30		£1.22 £1.02
	12		ST4119 713 6500 In stock	Plug screw		£3.08 £2.57
	13		ST4137 710 3800 In stock	Thrust plate		£16.84 £14.03
	14		ST4130 713 1600 In stock	Thrust washer		£4.18 £3.48
	15		ST4126 713 3100 Available to backorder	Rider plate		£9.68 £8.07
	16		ST4126 642 7600 In stock	Collar nut M10x1 l/h thread		£5.06 £4.22
	17		ST4130 893 7800 In stock	Locking pin		£0.48 £0.40
	18		ST0781 120 1117 In stock	Gearbox grease (80g tube)		£8.42 £7.02
