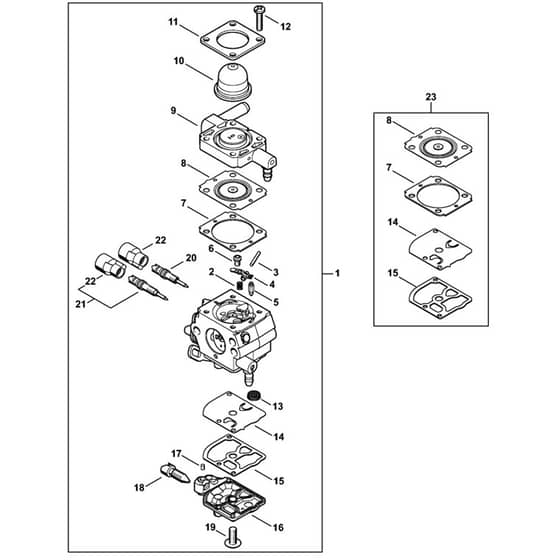

Stihl FS235 - Carburetor 4151-02 - Parts Diagram

Stihl FS235 - Carburetor 4151-02 - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS235 - Carburetor 4151-02 - Parts Diagram

Stihl FS235 - Carburetor 4151-02 - Parts Diagram

Description

Stihl FS235 - Carburetor 4151-02 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		ST4128 122 3000 Available to backorder	Spring		£2.32 £1.93
	3		ST1120 121 9200 Available to backorder	Spindle		£1.32 £1.10
	4		ST1125 121 5000 Available to backorder	Inlet control lever		£3.30 £2.75
	5		STZ000 018 Z000 Available to backorder	Inlet needle		£9.63 £9.63
	6		ST0000 122 7101 In stock	Screw		Was £4.40 £3.67 Special Price £3.12 £2.60
	7		ST1141 129 0900 Available to backorder	Metering gasket		£2.20 £1.83
	10		ST4226 121 2700 In stock	Cap		£5.62 £4.68
	11		ST4140 121 0800 Available to backorder	End cover		£17.16 £14.30
	12		ST4241 122 7100 Available to backorder	Screw		£4.18 £3.48
	13		ST1123 121 7800 Available to backorder	Strainer		£3.30 £2.75
	14		ST1129 121 4800 In stock	Pump diaphragm		£14.96 £12.47
	15		ST1123 129 0905 In stock	Pump gasket		£2.20 £1.83
	16		ST4134 121 0802 Available to backorder	End cover		£17.16 £14.30
	17		ST1125 122 4200 Available to backorder	Clamp		£1.66 £1.38
	18		ST1146 122 6200 Available to backorder	Idle speed screw		£10.78 £8.98
	19		ST1120 122 7800 Available to backorder	Oval head screw		£4.40 £3.67
	20		ST4241 122 6702 Available to backorder	High speed screw		£10.78 £8.98
	22		ST4229 121 2701 Available to backorder	Cap		£5.62 £4.68
