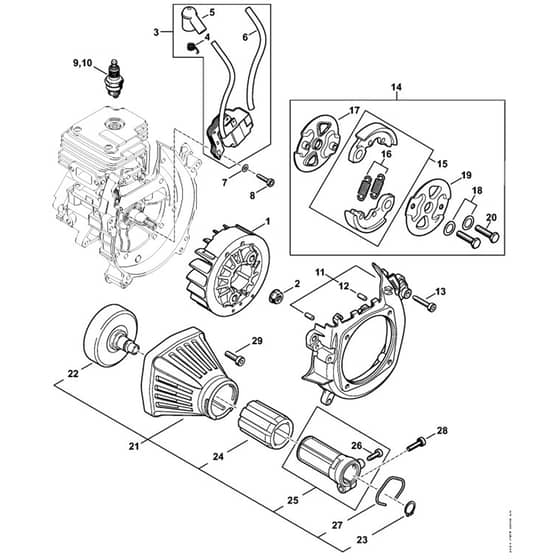

Stihl FS235.0 R - Ignition System, Clutch - Parts Diagram

Name: Stihl FS235.0 R - Ignition System, Clutch - Parts Diagram
SKU: fs235_0_r_ignition_system_clutch-group
Price: 0.38 GBP
Availability: InStock

Part No. fs235_0_r_ignition_system_clutch-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FS235.0 R - Ignition System, Clutch - Parts Diagram

Description

Stihl FS235.0 R - Ignition System, Clutch - Parts Diagram

	Part No.	Details
2	ST9220 260 1100 In stock	Hexagon nut M8	£0.83 £0.69
4	ST0000 998 0604 In stock	Spark plug contact spring	£1.43 £1.19
5	ST1128 405 1000 In stock	Spark plug boot	£6.84 £5.70
7	ST9291 021 0100 In stock	Washer 4.3	£0.53 £0.44
8	ST9075 478 3022 In stock	Pan head self-tapping screw IS-D4x20	£0.95 £0.79
9	2134 In stock	Spark plug NGK BPMR7A	£2.80 £2.33
12	ST9371 470 2570 Available to backorder	Cylindrical pin 5x12	£0.46 £0.38
13	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.08 £0.90
14	ST4147 160 2002 In stock	Clutch (Contains 15 - 20)	£55.16 £45.97
15	ST4147 160 2000 In stock	Clutch (Contains 16)	£32.53 £27.11
16	ST0000 997 5519 In stock	Tension spring	£1.19 £0.99
17	ST4147 160 3000 Available to backorder	Cover washer	£6.60 £5.50
18	ST0000 958 1000 In stock	Washer 16x10x0.5	£1.19 £0.99
19	ST4128 162 1000 Available to backorder	Cover washer	£6.04 £5.03
20	ST0000 951 0600 In stock	Hexagon head screw M6	£1.66 £1.38
22	ST4134 160 2900 Available to backorder	Clutch drum	£34.14 £28.45
23	ST9455 621 1520 In stock	Circlips DIN471-15x1	£0.95 £0.79
24	ST4137 791 9300 Available to backorder	Rubber insert	£10.24 £8.53
25	ST4137 790 7202 Available to backorder	Sleeve (Contains 26)	£19.08 £15.90
26	ST9075 478 4115 In stock	Pan head self-tapping screw IS-D5x16	£0.95 £0.79
27	ST9457 621 4481 In stock	Circlip	£1.79 £1.49
28	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.95 £0.79
29	ST9022 341 1300 In stock	Pan head screw IS M6x20	£0.95 £0.79
