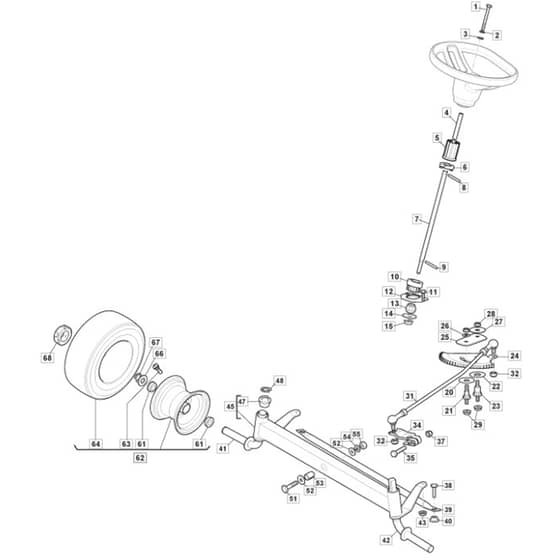

Freedom 30e - 2021 - 2T2200483/M21 - Mountfield Ride On Mower Steering Diagram

Freedom 30e - 2021 - 2T2200483/M21 - Mountfield Ride On Mower Steering Diagram
Freedom 30e - 2021 - 2T2200483/M21 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield Freedom 30e Parts Diagram

Product Name - Freedom 30e

Model Year - 2021

Model Type - MPNS 84 Li 48 V1

Art.N - 2T2200483/M21

Ref. Img. Part No. Details
  1 Screw
Screw
MO112692100/0 Out of stock
Screw
£2.70 £2.25

  2 Washer
Washer
MO112540260/0 Out of stock
Washer
£1.49 £1.24

  4 Spacer
Spacer
MO125160105/0 Out of stock
Spacer
£9.76 £8.13

  5 Support
Support
MO325785552/0 Out of stock
Support
£19.63 £16.36

  6 Bushing
Bushing
MO325038008/0 Out of stock
Bushing
£1.63 £1.36

  7 Steering Column
Steering Column
MO125520018/0 Out of stock
Steering Column
£23.02 £19.18

  8 Spring Pin 6X50
Spring Pin 6X50
MO112620300/0 Out of stock
Spring Pin 6X50
£1.75 £1.46

  9 Dowel Pin
Dowel Pin
MO112622650/0 Out of stock
Dowel Pin
£1.80 £1.50

  10 Pinion
Pinion
MO125570003/0 Out of stock
Pinion
£8.27 £6.89

  11 Screw
Screw
MO127943051/0 Out of stock
Screw
£1.74 £1.45

  12 Support
Support
MO325785213/1 Out of stock
Support
£2.30 £1.92

  13 Joint
Joint
MO325743000/0 Out of stock
Joint
£2.58 £2.15

  14 Washer
Washer
MO112521370/0 Out of stock
Washer
£1.49 £1.24

  15 Plate
Plate
MO112436030/0 Out of stock
Plate
£1.75 £1.46

  20 Antifriction Washer
Antifriction Washer
MO322672151/0 Out of stock
Antifriction Washer
£1.75 £1.46

  21 Pin
Pin
MO125510173/0 Out of stock
Pin
£1.90 £1.58

  22 Washer
Washer
MO125670023/0 Out of stock
Washer
£1.75 £1.46

  23 Pin
Pin
MO125510165/0 Out of stock
Pin
£4.60 £3.83

  24 Steering Sector
Steering Sector
MO325735519/0 In stock
Steering Sector
£32.16 £26.80

  25 Plate
Plate
MO325547233/0 Out of stock
Plate
£3.38 £2.82

  26 Elastic Washer
Elastic Washer
MO112369500/0 Out of stock
Elastic Washer
£1.36 £1.13

  27 Elastic Disc
Elastic Disc
MO122160400/0 In stock
Elastic Disc
£1.75 £1.46

  28 Nut
Nut
MO112155010/0 Out of stock
Nut
£2.04 £1.70

  31 Steering Rod
Steering Rod
MO382000566/2 In stock
Steering Rod
£33.36 £27.80

  32 Nut
Nut
MO112156602/0 In stock
Nut
£1.36 £1.13

  34 Steering Control Lever
Steering Control Lever
MO382318323/0 In stock
Steering Control Lever
£6.96 £5.80

  35 Screw
Screw
MO112692395/2 In stock
Screw
£3.12 £2.60

  37 Nut
Nut
MO112155020/0 Out of stock
Nut
£1.63 £1.36

  38 Pin
Pin
MO125510103/0 Out of stock
Pin
£1.49 £1.24

  39 Tie Rod
Tie Rod
MO325840029/0 Out of stock
Tie Rod
£10.30 £8.58

  40 Bushing
Bushing
MO325038007/0 Out of stock
Bushing
£1.63 £1.36

  41 Right Stub Axle 15
Right Stub Axle 15
MO382230373/1 Out of stock
Right Stub Axle 15"
£51.36 £42.80

  42 Left Stub Axle 15
Left Stub Axle 15
MO382230375/1 Out of stock
Left Stub Axle 15"
£54.18 £45.15

  43 Nut
Nut
MO112155000/0 In stock
Nut
£1.63 £1.36

  45 Rod
Rod
MO382034029/0 Out of stock
Rod
£104.29 £86.91

  47 Bushing
Bushing
MO125034002/1 Out of stock
Bushing
£3.65 £3.04

  48 Benzing Ring
Benzing Ring
MO112001010/0 In stock
Benzing Ring
£1.75 £1.46

  51 Screw
Screw
MO112692695/0 Out of stock
Screw
£1.49 £1.24

  52 Washer
Washer
MO112523100/0 Out of stock
Washer
£1.90 £1.58

  53 Spacer
Spacer
MO125160016/1 Out of stock
Spacer
£5.96 £4.97

  54 Grower
Grower
MO112587100/0 Out of stock
Grower
£1.49 £1.24

  55 Nut
Nut
MO112295300/0 Out of stock
Nut
£1.49 £1.24

  61 Bearing
Bearing
MO125122200/2 In stock
Bearing
£10.80 £9.00

  62 Wheel Assy 15
Wheel Assy 15
MO382680102/0 Out of stock
Wheel Assy 15" - P512 . Dark Grey Rimm
£102.12 £85.10

  62 Wheel Assy 15
Wheel Assy 15
MO382680093/0 Out of stock
Wheel Assy 15" 15" - P512 . Light Grey Rimm
£123.25 £102.71

  63 Valve
Valve
MO125950000/0 Out of stock
Valve
£4.92 £4.10

  64 Tyre 15X6.00-6 P512 Wanda 15
Tyre 15X6.00-6 P512 Wanda 15
MO125590019/0 Out of stock
Tyre 15X6.00-6 P512 Wanda 15"
£65.02 £54.18

  66 Washer
Washer
MO125670005/2 Out of stock
Washer
£3.92 £3.27

  68 Hub Cap [Black]
Hub Cap [Black]
MO322110233/0 In stock
Hub Cap [Black]
£1.80 £1.50


Description

Mountfield Freedom 30e Parts Diagram

Product Name - Freedom 30e

Model Year - 2021

Model Type - MPNS 84 Li 48 V1

Art.N - 2T2200483/M21
