Freedom 30e - 2021 - 2T2200483/M21 - Mountfield Ride On Mower Chassis Diagram

Description

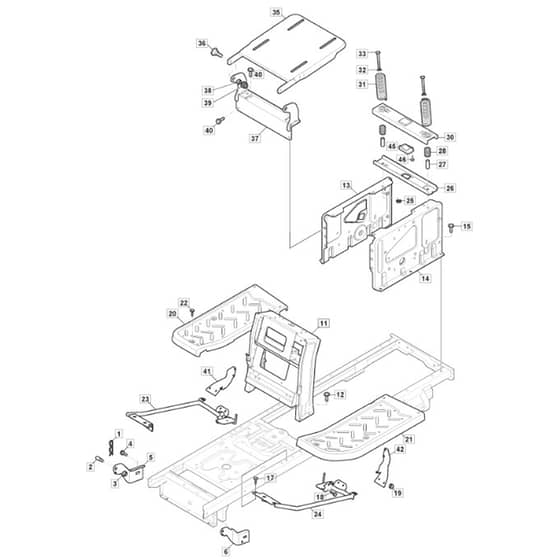

Mountfield Freedom 30e Parts Diagram

Product Name - Freedom 30e

Model Year - 2021

Model Type - MPNS 84 Li 48 V1

Art.N - 2T2200483/M21

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
2	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
5	MO325547225/0 Available to backorder	Right Plate	£6.32 £5.27
6	MO325547227/0 Available to backorder	Left Plate	£6.77 £5.64
11	MO382785313/1 Available to backorder	Steering Column Support From S.N 21LA3RON013263	£110.62 £92.18
11	MO382785313/0 Available to backorder	Steering Column Support To S.N 21LA3RON013262	£70.38 £58.65
12	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
13	MO325785331/2 Available to backorder	Right Seat Support	£32.24 £26.87
14	MO325785333/2 Available to backorder	Left Seat Support	£32.24 £26.87
19	MO112155000/0 In stock	Nut	£1.55 £1.29
20	MO325500041/1 Available to backorder	Right Footboard	£37.79 £31.49
21	MO325500043/1 Available to backorder	Left Footboard	£42.22 £35.18
22	MO112735599/0 In stock	Screw	£1.55 £1.29
23	MO382785223/0 Available to backorder	Footboard Support	£43.63 £36.36
24	MO382785221/0 Available to backorder	Footboard Support	£36.59 £30.49
25	MO112293201/0 In stock	Nut	£1.70 £1.42
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
28	MO125430263/0 Available to backorder	Spring	£1.39 £1.16
30	MO325820111/1 Available to backorder	Switch Comand Cross	£10.00 £8.33
31	MO125430264/1 Available to backorder	Spring	£9.38 £7.82
32	MO112521350/0 In stock	Washer	£1.55 £1.29
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
35	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
36	MO122524970/3 Available to backorder	Pin	£1.70 £1.42
37	MO382820151/1 Available to backorder	Seat Support	£24.06 £20.05
38	MO112155010/0 In stock	Nut	£2.11 £1.76
39	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
41	MO325650155/2 Available to backorder	Support	£10.40 £8.67
42	MO325650157/2 Available to backorder	Support	£10.85 £9.04
45	MO325785379/1 Available to backorder	Support	£1.63 £1.36
46	MO112728686/0 In stock	Self-Tapping Screw Ka50 X 16	£1.55 £1.29
