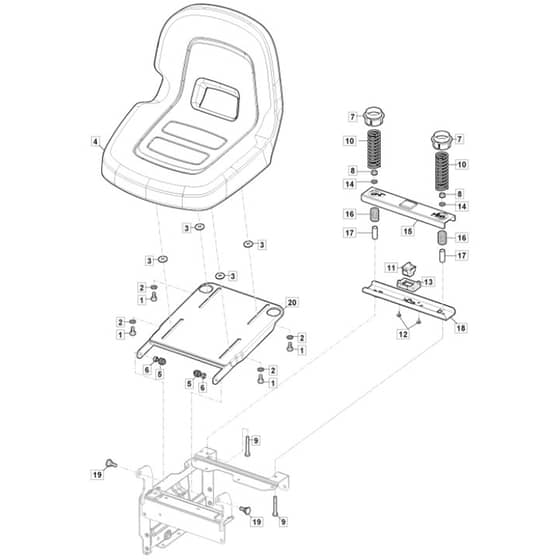

Freedom 28e - 2022 - 2T0250483/M22T - Mountfield Ride On Mower Seat Diagram

Description

Mountfield Freedom 28e Parts Diagram

Product Name - Freedom 28e

Model Year - 2022

Model Type - R72 Li 48 V1

Art.N - 2T0250483/M22T

	Part No.	Details
1	MO112792611/0 In stock	Screw	£1.55 £1.29
2	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
3	MO112523060/0 In stock	Washer	£1.55 £1.29
4	MO125722488/0 In stock	Seat	£190.04 £158.37
5	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
6	MO112155010/0 In stock	Nut	£2.11 £1.76
7	MO325600148/0 Available to backorder	Hood	£1.46 £1.22
8	MO112293201/0 In stock	Nut	£1.70 £1.42
9	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
10	MO125430264/1 Available to backorder	Spring	£9.38 £7.82
11	MO119410622/1 In stock	Microswitch	£6.64 £5.53
12	MO112728686/0 In stock	Screw	£1.55 £1.29
13	MO325785379/1 Available to backorder	Support	£1.63 £1.36
14	MO112521350/0 In stock	Washer	£1.55 £1.29
15	MO325820111/1 Available to backorder	Switch Comand Cross	£10.00 £8.33
16	MO125430263/0 Available to backorder	Spring	£1.39 £1.16
17	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
18	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
19	MO122524970/3 Available to backorder	Pin	£1.70 £1.42
20	MO382547061/1 Available to backorder	Seat Plate Assembly	£36.59 £30.49
