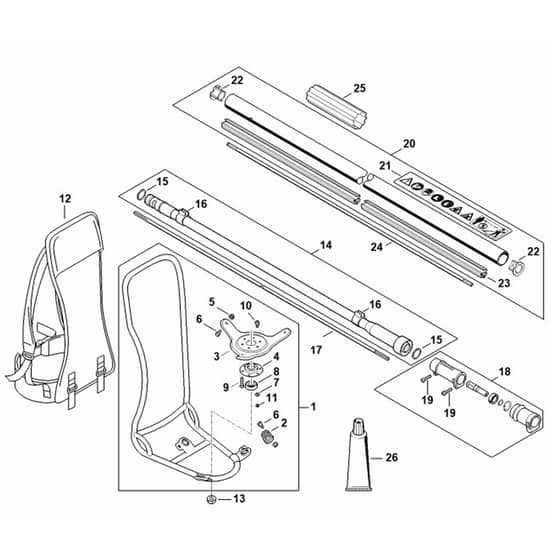

Stihl FR235.0 - Support Frame, Drive Tube Assembly - Parts Diagram

Name: Stihl FR235.0 - Support Frame, Drive Tube Assembly - Parts Diagram
SKU: fr235_0_support_frame_drive_tube_assembly-group
Price: 0.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FR235.0 - Support Frame, Drive Tube Assembly - Parts Diagram

Description

Stihl FR235.0 - Support Frame, Drive Tube Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	ST9220 260 0901 Available to backorder	Hexagon nut M6	£0.56 £0.47
6	ST9022 341 1280 In stock	Spline screw IS-M6x16	£0.88 £0.73
7	ST9291 021 0140 In stock	Washer 6.4	£0.36 £0.30
8	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£5.84 £4.87
9	ST9022 341 1050 In stock	Spline screw IS-M5x25	£1.00 £0.83
10	ST9022 341 0950 Available to backorder	Pan head screw IS M5x10	£0.76 £0.63
11	ST9220 260 0700 In stock	Hexagon nut M5	£0.48 £0.40
13	ST9220 260 1300 Available to backorder	Hexagon nut M10	£1.00 £0.83
14	ST4147 820 0400 Available to backorder	Protective tube (Contains 15 + 16)	£130.90 £109.08
15	ST9645 945 7603 Available to backorder	O-ring 18x2.5	£0.66 £0.55
16	ST4132 182 2100 Available to backorder	Retainer	£4.52 £3.77
17	ST4147 711 3301 Available to backorder	Flexible shaft	£36.08 £30.07
18	ST4147 160 0501 Available to backorder	Coupling flange (Contains 19)	£56.10 £46.75
19	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.00 £0.83
20	ST4137 710 7108 In stock	Drive tube assembly Ø 25.4 mm / 1" x 1.5 m / 59 1/16" (Contains 21 - 23)	£66.00 £55.00
21	ST0000 967 7253 In stock	Warning pictogram FS	£2.08 £1.73
22	ST4137 711 2101 In stock	Plug	£0.76 £0.63
23	ST4137 711 7300 In stock	Flexible liner 1455 mm	£12.54 £10.45
24	ST4137 711 3200 In stock	Drive shaft	£49.28 £41.07
25	ST0000 711 2500 Available to backorder	Sleeve	£7.48 £6.23
26	ST0781 120 1110 In stock	Multipurpose grease 225 g	£20.48 £17.07
