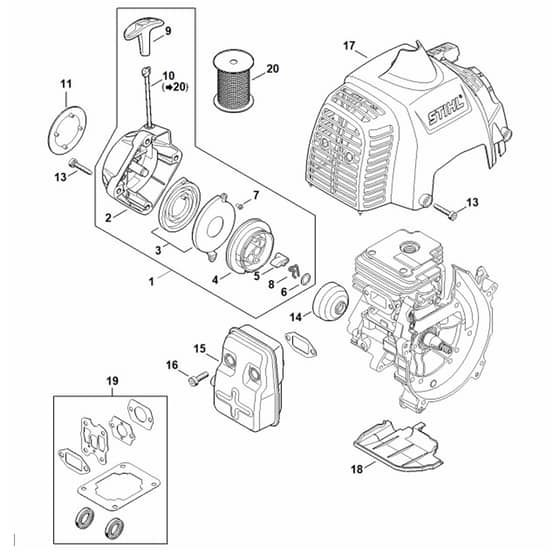

Stihl FR235.0 - Rewind Starter, Muffler - Parts Diagram

Name: Stihl FR235.0 - Rewind Starter, Muffler - Parts Diagram
SKU: fr235_0_rewind_starter_muffler-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl FR235.0 - Rewind Starter, Muffler - Parts Diagram

Description

Stihl FR235.0 - Rewind Starter, Muffler - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	ST4134 190 0601 Available to backorder	Rewind spring	£9.58 £7.98
4	ST4128 195 0400 Available to backorder	Rope rotor	£8.68 £7.23
5	ST4116 195 7200 In stock	Pawl	£2.20 £1.83
6	ST0000 958 0923 In stock	Washer	£1.10 £0.92
7	ST9104 003 0410 In stock	Self-tapping screw P3x6	£0.66 £0.55
8	ST1118 195 3500 In stock	Spring	£1.10 £0.92
9	ST4140 195 3400 In stock	Starter grip	£3.86 £3.22
10	ST1120 195 8200 Available to backorder	Starter rope Ø 3x1060 mm	£3.74 £3.12
13	ST9075 478 4175 In stock	Pan head self-tapping screw IS-D5x28	£1.00 £0.83
14	ST4140 195 0601 In stock	Starter cup	£8.80 £7.33
16	ST9022 341 1300 In stock	Pan head screw IS M6x20	£0.88 £0.73
20	ST0000 930 2211 Available to backorder	Starter rope Ø 3 mm x 60.8 m	£62.70 £52.25
20	ST0000 930 2208 Available to backorder	Starter rope Ø 3 mm x 30.5 m	£35.08 £29.23
