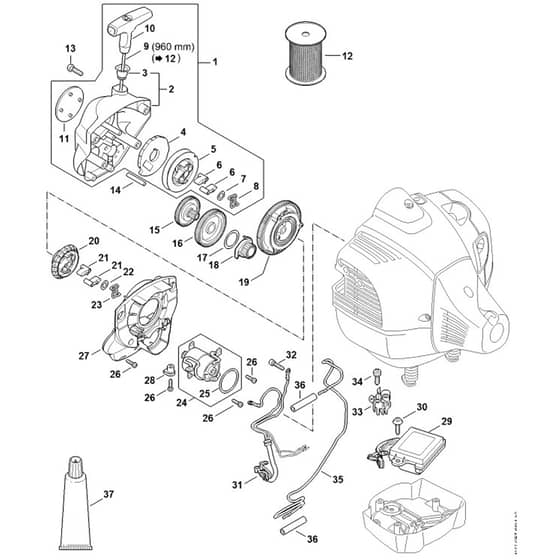

Stihl FR 460.0 TC-EFM - Rewind Starter Fr 460 Electric Starter - Parts Diagram

Description

Stihl FR 460.0 TC-EFM - Rewind Starter Fr 460 Electric Starter - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4147 190 0301 Available to backorder	Starter cover with rewind starter (Contains 2 - 11)	£72.04 £60.03
2	ST4147 190 0407 Available to backorder	Starter cover (Contains 3)	£40.36 £33.63
3	ST1110 084 9102 In stock	Bushing	£1.88 £1.57
4	ST4282 190 0600 In stock	Rewind spring	£11.66 £9.72
5	ST4119 195 0401 Available to backorder	Rope rotor	£8.68 £7.23
6	ST4116 195 7200 In stock	Pawl	£2.20 £1.83
7	ST0000 958 0923 In stock	Washer	£1.10 £0.92
8	ST1128 195 3500 In stock	Spring	£1.22 £1.02
9	ST1113 195 8200 In stock	Starter rope Ø 3.5x960 mm	£3.96 £3.30
10	ST1121 195 3400 In stock	Starter grip	£3.86 £3.22
11	ST4147 967 1546 Available to backorder	Model plate FR 460 TC	£4.52 £3.77
12	ST0000 930 2212 Available to backorder	Starter rope Ø 3.5 mm x 60.8 m	£73.16 £60.97
12	ST0000 930 2203 Available to backorder	Starter rope Ø 3.5 mm x 30.5 m	£40.92 £34.10
13	ST9075 478 4159 In stock	Pan head self-tapping screw IS-D5x24	£0.89 £0.74
14	ST9371 470 3220 Available to backorder	Cylindrical pin 6x36	£0.95 £0.79
15	ST4244 195 6700 Available to backorder	Spur gear	£11.22 £9.35
16	ST4244 195 6701 Available to backorder	Spur gear	£11.44 £9.53
17	ST9296 021 1687 Available to backorder	Shim ring 20x28x03	£0.66 £0.55
18	ST4244 195 6702 Available to backorder	Spur gear	£9.46 £7.88
19	ST4244 190 0700 In stock	Spring housing	£38.06 £31.72
20	ST4244 195 2000 In stock	Carrier	£3.20 £2.67
22	ST0000 958 0806 In stock	Washer	£1.10 £0.92
24	ST4147 600 0201 Available to backorder	Electric motor 72 V (Contains 25)	£50.26 £41.88
25	ST9645 945 7908 In stock	Sealing ring	£0.76 £0.63
26	ST9074 477 3400 Available to backorder	Pan head self-tapping screw IS-P4.5x14	£0.76 £0.63
27	ST4147 195 6800 Available to backorder	Bearing shell	£6.16 £5.13
28	ST9286 929 0040 Available to backorder	Slip-on nut 45x25x7	£0.48 £0.40

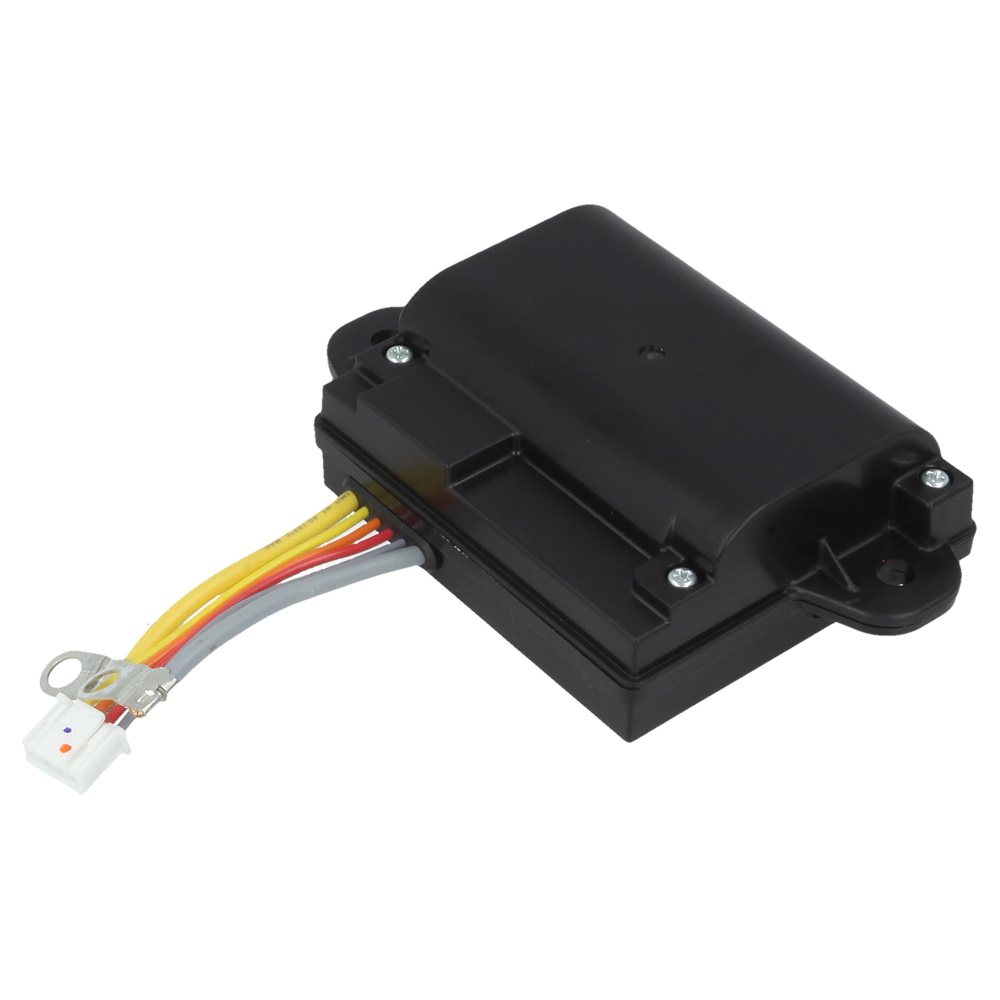

29	ST4147 430 1400 Available to backorder	Electronic module	£118.80 £99.00
30	ST0000 951 1100 In stock	Screw	£1.54 £1.28
31	ST4147 440 3002 Available to backorder	Wiring harness	£14.08 £11.73
32	ST9022 341 0980 In stock	Pan head screw IS M5x16	£0.84 £0.70
33	ST4147 440 3500 Available to backorder	Lead retainer	£5.94 £4.95
34	ST9022 341 0976 Available to backorder	Spline screw IS-M5x14	£0.88 £0.73
35	ST4147 440 0300 Available to backorder	Cable	£9.24 £7.70
36	ST1138 442 0404 Available to backorder	Insulating hose 33.5 mm	£1.98 £1.65
37	ST0781 120 6003 Available to backorder	Synthetic grease G34-130 40g	£9.50 £7.92
