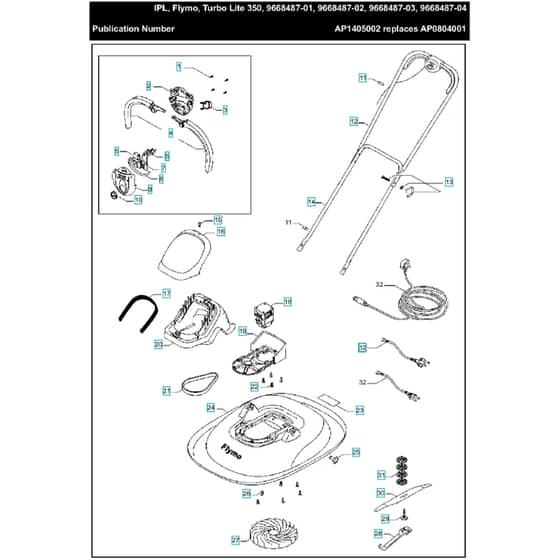

Flymo Turbo Lite 350 - 2014-05 - Lawn Mower Main Assembly

Name: Flymo Turbo Lite 350 - 2014-05 - Lawn Mower Main Assembly
SKU: turbo_lite_350_2014_05_main_assy-group
Price: 1.17 GBP
Availability: InStock

Part No. turbo_lite_350_2014_05_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Flymo Turbo Lite 350 - 2014-05 - Lawn Mower Main Assembly

Description

Product Name - Flymo Turbo Lite 350

Model Year - 2014-05

	Part No.	Details
1	HV579 44 37-01 Available to backorder	Screw	£4.25 £3.54
2	HV588 20 31-68 Available to backorder	Switchbox Lower Uk Inlet Grey UK.CH.AUS	£8.02 £6.68
3	HV512 77 32-68 Available to backorder	Protector CH.AUS	£1.40 £1.17
6	HV505 55 07-01 Available to backorder	Retainer UK	£3.73 £3.11
6	HV574 64 57-01 Available to backorder	Pin Retainer EU	£2.36 £1.97
7	HV513 12 16-00 Available to backorder	Capacitor	£5.86 £4.88
8	HV511 94 31-00 Available to backorder	Spares Lead Kit	£15.59 £12.99
12	HV512 77 12-00 Available to backorder	Handle	£19.48 £16.23
13	HV574 62 68-01 Available to backorder	Wing Knob	£11.14 £9.28
14	HV511 84 24-00 Available to backorder	Handle	£18.02 £15.02
15	HV577 29 87-01 Available to backorder	Vite	£4.34 £3.62
18	HV511 78 99-90 Available to backorder	Motor Kit	£201.60 £168.00
19	HV510 44 40-01 Available to backorder	Drive Assembly	£60.11 £50.09
22	HV577 29 86-01 Available to backorder	Screw	£4.34 £3.62
24	HV510 72 73-00 Available to backorder	Hood	£105.00 £87.50
27	HV511 72 27-05 Available to backorder	Impeller	£54.48 £45.40
28	HV510 77 80-64 In stock	Spanner	£2.93 £2.44
29	HV510 77 79-00 Available to backorder	Blade	£7.91 £6.59
30	HV512 73 34-90 Available to backorder	Mower Blade	£23.34 £19.45
31	HV513 81 10-90 Available to backorder	Washer	£7.38 £6.15
32	HV513 12 53-00 Available to backorder	Insulated Lead AUS	£24.00 £20.00
32	HV510 37 25-90 In stock	Electric Cord UK	£25.52 £21.27
