Flymo Power Trim 500 XT - 2014-11 - Trimmer Main Assembly

Name: Flymo Power Trim 500 XT - 2014-11 - Trimmer Main Assembly
SKU: power_trim_500_xt_2014_11_main_assy-group
Price: 0.43 GBP
Availability: InStock

Part No. power_trim_500_xt_2014_11_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

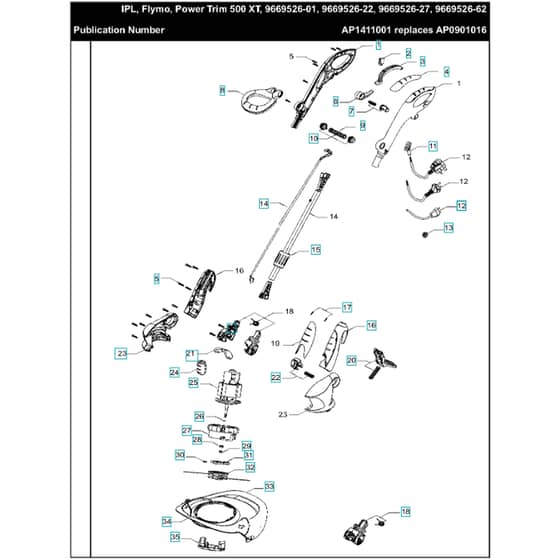

Flymo Power Trim 500 XT - 2014-11 - Trimmer Main Assembly

Description

Product Name - Flymo Power Trim 500 XT

Model Year - 2014-11

	Part No.	Details
1	HV522 49 14-01 Available to backorder	Handle Assembly	£36.74 £30.62
2	HV521 95 12-01 Available to backorder	Switch	£10.26 £8.55
3	HV522 49 16-01 Available to backorder	Lever	£1.98 £1.65
4	HV522 49 13-01 Available to backorder	Plate	£5.77 £4.81
5	HV522 49 08-01 Available to backorder	Screw	£1.26 £1.05
6	HV522 49 12-01 Available to backorder	Clip	£0.80 £0.67
7	HV521 95 13-01 Available to backorder	Cable	£1.15 £0.96
8	HV522 49 29-01 Available to backorder	Handle	£16.32 £13.60
10	HV522 49 18-01 Available to backorder	Button	£2.52 £2.10
11	HV522 72 99-01 Available to backorder	Grommet	£0.80 £0.67
12	HV510 79 68-00 Available to backorder	Mains Lead Ch	£50.83 £42.36
12	HV511 97 11-00 Available to backorder	Extnsn Cable Mld Plug Euro	£29.14 £24.28
14	HV522 49 15-01 Available to backorder	Tube Inc Capacitor	£24.40 £20.33
15	HV522 49 20-01 Available to backorder	Ring	£3.34 £2.78
18	HV522 49 36-01 Available to backorder	Swivel	£8.36 £6.97
19	HV522 49 35-01 Available to backorder	Cover Plate	£0.98 £0.82
21	HV522 49 21-01 Available to backorder	Filter	£0.80 £0.67
24	HV522 49 39-01 Available to backorder	Roller	£0.55 £0.46
25	HV522 49 28-01 Available to backorder	Motor	£155.64 £129.70
26	HV514 02 66-00 In stock	Washer	£2.50 £2.08
27	HV510 73 67-87 Available to backorder	Trimmer Head	£26.15 £21.79
28	HV514 86 83-00 Available to backorder	Nut	£1.79 £1.49
29	HV525 40 02-01 Available to backorder	Hub Cap	£0.52 £0.43
30	HV514 89 40-00 Available to backorder	Spring	£0.95 £0.79
31	HV510 08 59-01 Available to backorder	Line	£0.77 £0.64
32	HV513 93 71-90 Available to backorder	Spool & Line	£10.15 £8.46
33	HV522 49 31-01 Available to backorder	Guard	£17.30 £14.42
34	HV522 49 32-01 Available to backorder	Guide	£1.37 £1.14
