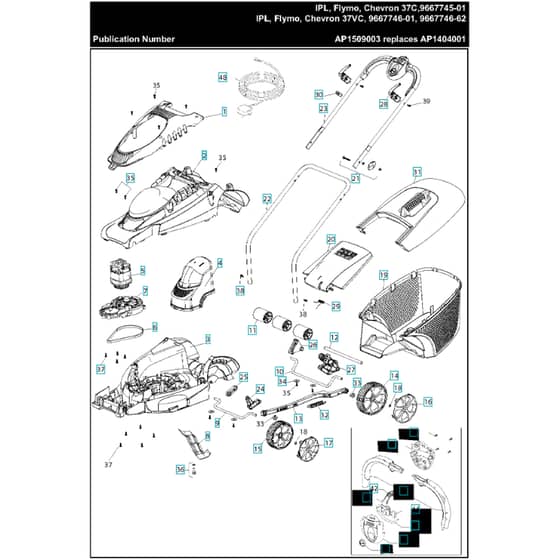

Flymo Chevron 37C - 2016-01 - Lawn Mower Main Assembly

Description

Product Name - Flymo Chevron 37C

Model Year - 2016-01

	Part No.	Details
4	HV578 90 62-67 Available to backorder	Filter	£23.15 £19.29
5	HV579 14 60-01 Available to backorder	Motor	£68.88 £57.40
6	HV575 50 26-01 Available to backorder	Belt	£19.54 £16.28
7	HV578 87 90-01 Available to backorder	Driver Assembly	£28.01 £23.34
11	HV510 73 84-00 Available to backorder	Roller	£1.06 £0.88
12	HV514 96 11-03 Available to backorder	Axle Tube	£1.46 £1.22
14	HV575 58 26-67 Available to backorder	Wheel	£10.01 £8.34
15	HV575 58 25-67 Available to backorder	Wheel	£10.01 £8.34
16	HV575 58 28-06 Available to backorder	Hub Cap	£10.16 £8.47
19	HV575 58 33-68 Available to backorder	Grassbag	£59.87 £49.89
22	HV576 13 73-68 Available to backorder	Handle	£32.35 £26.96
23	HV578 89 67-68 Available to backorder	Handle	£32.15 £26.79
26	HV575 58 22-67 Available to backorder	Spacer	£8.68 £7.23
28	HV510 74 62-00 Available to backorder	Hook	£1.32 £1.10
29	HV505 47 43-01 Available to backorder	Spring	£4.58 £3.82
31	HV579 14 58-01 Available to backorder	Lid	£34.04 £28.37
32	HV510 80 51-00 Available to backorder	Spring	£5.03 £4.19
34	HV513 91 89-00 Available to backorder	Washer	£3.32 £2.77
35	HV577 71 38-01 Available to backorder	Screw Pack Of 5	£4.94 £4.12
36	HV577 71 39-01 Available to backorder	Bolt	£4.82 £4.02
37	HV577 29 86-01 Available to backorder	Screw Kit Pack Of 5	£4.34 £3.62
38	HV577 75 90-01 Available to backorder	Screw Kit Pack Of 2	£3.12 £2.60
39	HV579 44 37-01 Available to backorder	Screw Pack Of 6	£4.25 £3.54
40	HV511 94 83-68 Available to backorder	Switchbox Lower Hardwired Grey UK.AUS	£0.94 £0.78
40	HV574 62 68-01 Available to backorder	Switchbox EU	£11.14 £9.28
42	HV574 64 57-01 Available to backorder	Pen	£2.36 £1.97
44	HV513 12 16-00 Available to backorder	Capacitor	£5.86 £4.88
45	HV513 12 19-00 Available to backorder	Lead Assembly Switchbox EU	£7.33 £6.11
