Flymo 600HD - Main Assembly

Name: Flymo 600HD - Main Assembly
SKU: conur600hdmain-group
Price: 0.16 GBP
Availability: InStock

Part No. conur600hdmain-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Flymo 600HD Trimmer - Main Assembly Parts Diagram

	Part No.	Details
1	HV574 39 35-01 Available to backorder	KIT HANDLE CLAMSHELLS	£21.02 £17.52
2	HV521 95 12-01 Available to backorder	SWITCH	£10.26 £8.55
3	HV510 73 05-00 Available to backorder	SWITCH LEVER	£3.49 £2.91
4	HV521 95 16-01 Available to backorder	SCREW PACK (QTY 10)	£0.52 £0.43
5	HV521 95 14-01 Available to backorder	CABLE HOOK	£1.15 £0.96
6	HV521 95 13-01 Available to backorder	CABLE HOOK RELEASE MECHANISM	£1.15 £0.96
10	HV514 93 70-00 Available to backorder	CABLE GROMMET	£0.48 £0.40
11	HV511 97 11-00 Available to backorder	MAINS CABLE EU 1	£29.14 £24.28
12	HV504 63 30-01 Available to backorder	LOCKING RING	£3.22 £2.68
13	HV521 95 10-01 Available to backorder	SHAFT ASSY	£25.49 £21.24
14	HV574 39 38-01 Available to backorder	KIT SPEED CONTROLLER PCB	£28.46 £23.72
15	HV504 63 16-01 Available to backorder	RELEASE LEVER ASSY	£0.98 £0.82
17	HV574 39 37-01 Available to backorder	CLAMSHELL PAIR	£25.54 £21.28
19	HV521 95 02-01 Available to backorder	MOTOR HOUSING INCL SPRING	£26.09 £21.74
20	HV574 39 39-01 Available to backorder	MOTOR ASSY	£58.18 £48.48
21	HV510 73 64-87 Available to backorder	WHEEL	£19.66 £16.38

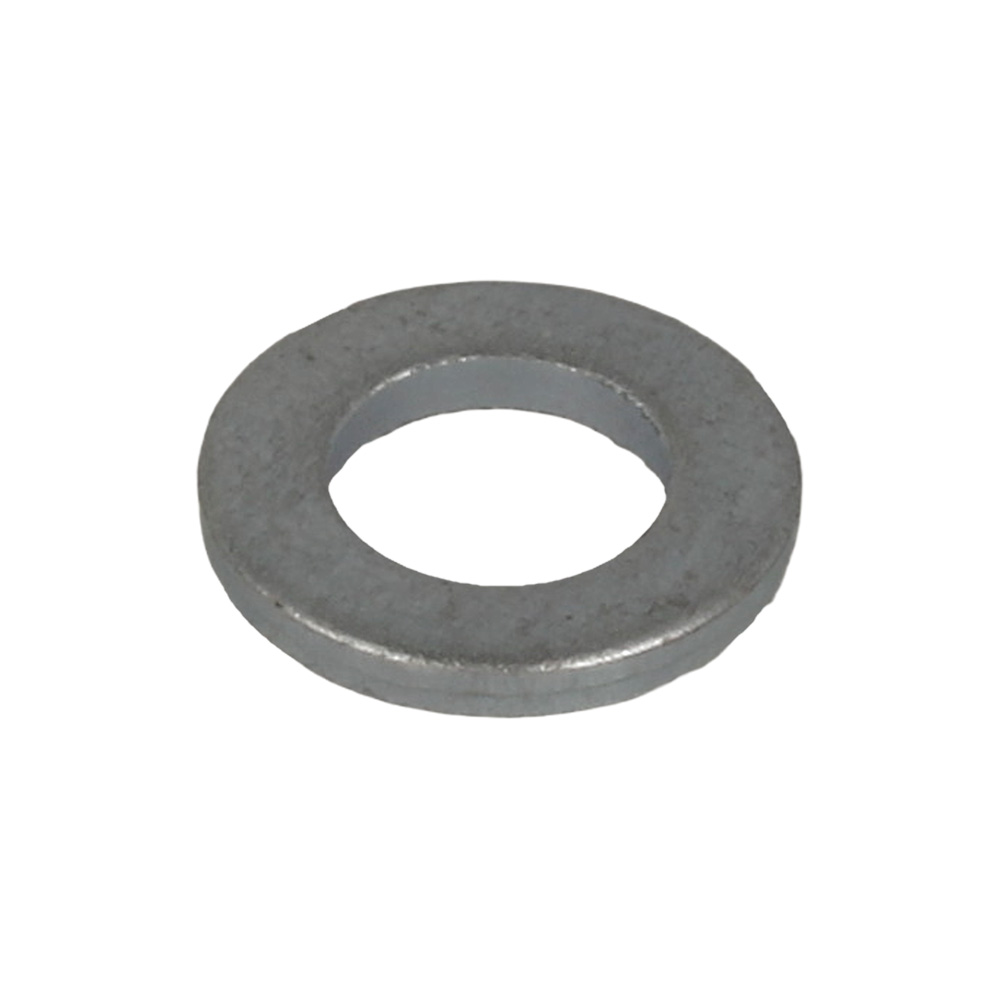

22	HV514 02 66-00 In stock	WASHER FOR MOTOR SHAFT	£2.50 £2.08
24	HV514 89 40-00 Available to backorder	SPRING FOR LINE FEEDER	£0.95 £0.79
25	HV510 08 59-01 Available to backorder	LINE FEEDER	£0.77 £0.64
26	HV514 86 83-00 Available to backorder	NUT	£1.79 £1.49
27	HV514 86 31-00 In stock	INSULATOR CAP	Was £0.52 £0.43 Special Price £0.19 £0.16
28	HV510 24 59-90 Available to backorder	SPOOL & LINE	£10.15 £8.46
30	HV510 73 62-87 Available to backorder	GUARD	£8.21 £6.84
