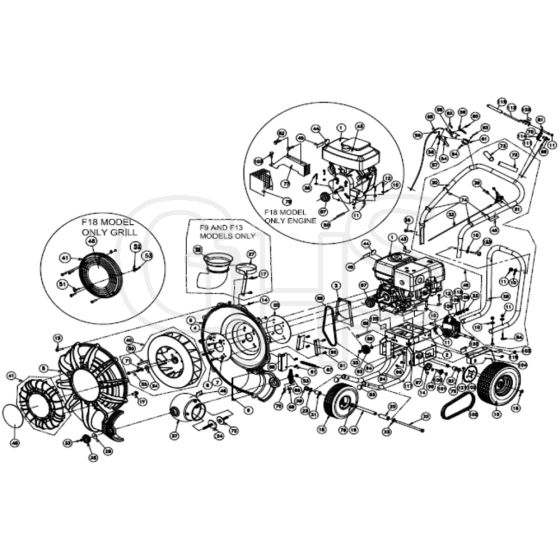

Billy Goat F902SPS - Force Blower Main Diagram

Ref. Img. Part No. Details
  7 Washer Lock 3/8 S/T Med BG8177013
Washer Lock 3/8 S/T Med
Out of stock
£0.78 £0.65

  10 Washer 5/16 Flatwasher Z/P BG8171003
Washer 5/16 Flatwasher Z/P
Out of stock
£0.78 £0.65

  11 Nylon Insert Locknut 5/16-18 BG8160002
Nylon Insert Locknut 5/16-18
Out of stock
£0.97 £0.81

  12 Screwcap 5/16-18 X 175 Zp BG8041031
Screwcap 5/16-18 X 175 Zp
Out of stock
£0.97 £0.81

  13 Screwcap 1/4-20 X 1 1/2 BG8041008
Screwcap 1/4-20 X 1 1/2
Out of stock
£1.20 £1.00

  14 Nut Flange 1/4-20 BG900455
Nut Flange 1/4-20
Out of stock
£1.08 £0.90

  15 Wheel & Tire 13 BG440219
Wheel & Tire 13" X 5" Pneumatic Sprocket
Out of stock
£138.96 £115.80

  16 Ring Retaining 3/4 BG850230
Ring Retaining 3/4
Out of stock
£0.78 £0.65

  17 Screw Sm 1/4 BG8122082
Screw Sm 1/4" X 3/4" Type Ab Hx Wf
Out of stock
£1.08 £0.90

  18 Wheel Assy 10 BG400295
Wheel Assy 10 " Pneumatic
Out of stock
£82.32 £68.60

  22 Screwcap 1/2-13 X 9 1/2 BG8041240
Screwcap 1/2-13 X 9 1/2"
Out of stock
£8.72 £7.27

  23 Washer Flat 1/2 BG8172011
Washer Flat 1/2" Sae
In stock
Was £1.10 £0.92 Special Price £0.73 £0.61

  25 Knob 3/8-16 Solid Hub BG811230
Knob 3/8-16 Solid Hub
Out of stock
£8.40 £7.00

  29 Nylon Insert Locknut 1/2-13Lt Wt Th Zp BG8161044
Nylon Insert Locknut 1/2-13Lt Wt Th Zp
Out of stock
£0.97 £0.81

  31 Control Throttle BG440013
Control Throttle
Out of stock
£48.18 £40.15

  32 Cable Throttle Control BG440014
Cable Throttle Control
Out of stock
£32.94 £27.45

  33 Nut Lock 3/8-16 Lt Wt Thin Zp BG8161042
Nut Lock 3/8-16 Lt Wt Thin Zp
Out of stock
£0.97 £0.81

  36 Screwcap 5/16 BG8041032
Screwcap 5/16"-18 X 2" Zp
Out of stock
£0.97 £0.81

  38 Divertor Front BG440045-4
Divertor Front
Out of stock
£56.96 £47.47

  39 Screw Sm #10-24X1/2 BG8122064
Screw Sm #10-24X1/2" Drill Point
Out of stock
£1.08 £0.90

  40 Impeller Assembly 17 BG440236
Impeller Assembly 17"
Out of stock
£272.88 £227.40

  41 Grill Front Blower BG440067-1-S
Grill Front Blower
Out of stock
£73.20 £61.00

  42 Label Throttle Control BG810656
Label Throttle Control
Out of stock
£3.71 £3.09

  44 Label Read BG100346
Label Read
Out of stock
£3.71 £3.09

  46 Label Danger Flying Debris BG810736
Label Danger Flying Debris
Out of stock
£3.71 £3.09

  50 Key 1/4 BG9201128
Key 1/4" Sq X 3 1/4
Out of stock
£2.40 £2.00

  53 Nut Lock 1/4 BG8160001
Nut Lock 1/4"-20 Hex Zp
Out of stock
£0.97 £0.81

  65 Cable Assy BG440117
Cable Assy
Out of stock
£32.22 £26.85

  66 Diverter Pivot Adaptor BG440121
Diverter Pivot Adaptor
Out of stock
£6.43 £5.36

  67 Spring Extension 0468 X 525 BG440130
Spring Extension 0468 X 525
Out of stock
£8.05 £6.71

  69 Pin Clevis 1/4 X 3/4 BG440124
Pin Clevis 1/4 X 3/4
Out of stock
£1.28 £1.07

  70 Hitch Pin Clip 051 X 3/4 BG440193
Hitch Pin Clip 051 X 3/4"
Out of stock
£0.97 £0.81

  73 Grip 1-1/4 BG440146
Grip 1-1/4" Id X 95" Long
Out of stock
£8.72 £7.27

  74 Ty-Wrap BG900407
Ty-Wrap
Out of stock
£0.78 £0.65

  75 Washer 765 Id X 125 Od X06 BG850238
Washer 765 Id X 125 Od X06"
Out of stock
£1.08 £0.90

  76 Force Wheel Bearing 751 Id BG440055
Force Wheel Bearing 751 Id
Out of stock
£17.34 £14.45

  83 Plug BG791056
Plug
Out of stock
£1.28 £1.07

  86 Belt 3L29 BG440215
Belt 3L29
Out of stock
£25.68 £21.40

  91 Screw Plastite 1/4-10 X 3/4 Hwh Zp BG840082
Screw Plastite 1/4-10 X 3/4 Hwh Zp
Out of stock
£1.28 £1.07

  96 Carriage Bolt 1/4 BG8024021
Carriage Bolt 1/4"-20 X 3/4"
Out of stock
£0.97 £0.81

  97 Bearing 1/2 BG891025-S
Bearing 1/2" Steel Pressed Housing
Out of stock
£14.58 £12.15

  99 Key Woodruff 1/8 BG510180
Key Woodruff 1/8" X 1/2"
Out of stock
£1.08 £0.90

  100 Sprocket 8 Tooth BG891022
Sprocket 8 Tooth
Out of stock
£18.30 £15.25

  101 Retaining Ring 1/2 BG350146
Retaining Ring 1/2"
Out of stock
£1.06 £0.88

  103 Screw Self Tap 1/4 BG890359
Screw Self Tap 1/4"-20 X 5/8"
Out of stock
£1.40 £1.17

  104 Chain Guard Lh BG440206-S
Chain Guard Lh
In stock
£49.34 £41.12

  104 Chain Guard Rh BG440207-S
Chain Guard Rh
Out of stock
£57.95 £48.29

  105 Chain #43X44 Pitches BG440217
Chain #43X44 Pitches
Out of stock
£11.21 £9.34

  108 Trans Single Speed W/Clutch BG440216
Trans Single Speed W/Clutch
Out of stock
£377.04 £314.20

  109 Washer 3/8 BG8172009
Washer 3/8" Sae
Out of stock
£1.28 £1.07

  111 Clutch Cable Force Sp BG440243
Clutch Cable Force Sp
Out of stock
£53.29 £44.41

  120 Label Danger BG900327
Label Danger
Out of stock
£3.71 £3.09

  123 Eyebolt Pigtail 5/16 BG440280
Eyebolt Pigtail 5/16"-18 X 1 1/4"
Out of stock
£6.06 £5.05


Description

F902SPS Parts Diagram
