Billy Goat F900S - Force Blower Main Diagram

Name: Billy Goat F900S - Force Blower Main Diagram
SKU: f900s_force_blower_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat F900S - Force Blower Main Diagram

Description

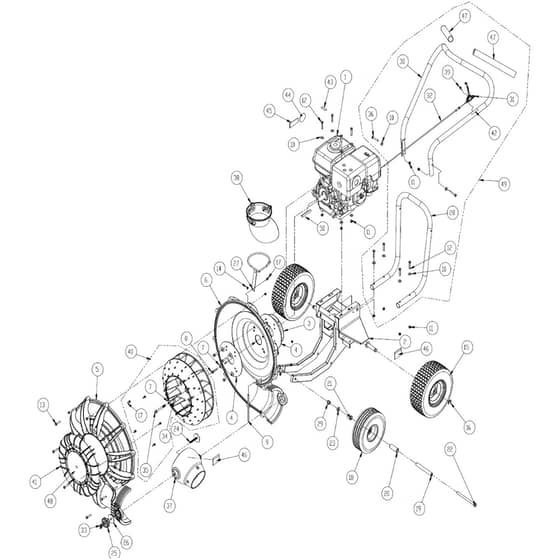

F900S Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	BG440330 Available to backorder	Plate Reinforce Housing	£24.31 £20.26
7	BG400502 Available to backorder	Washer Lock 3/8 Twisted Tooth	£4.20 £3.50
8	BG8041052 Available to backorder	Screw Cap 3/8-16X1 1/2 Zp	£1.28 £1.07
10	BG8171003 Available to backorder	Washer 5/16 Flatwasher Z/P	£0.78 £0.65
11	BG8160002 Available to backorder	Nylon Insert Locknut 5/16-18	£0.97 £0.81
12	BG8041031 Available to backorder	Screwcap 5/16-18 X 175 Zp	£0.97 £0.81
13	BG8041008 Available to backorder	Screwcap 1/4-20 X 1 1/2	£1.20 £1.00
14	BG900455 Available to backorder	Nut Flange 1/4-20	£1.08 £0.90
15	BG440054 Available to backorder	Wheel & Tire 13" X 5" Pneumatic	£139.50 £116.25
16	BG850230 Available to backorder	Ring Retaining 3/4	£1.00 £0.83
17	BG8122082 Available to backorder	Screw Self-Tap 5/16 Nc X 3/4 Hex	£1.61 £1.34
18	BG400295 Available to backorder	Wheel Assy 10 " Pneumatic	£104.30 £86.92
23	BG8172011 In stock	Washer Flat 1/2" Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
25	BG811230 Available to backorder	Knob 3/8-16 Solid Hub	£8.40 £7.00
29	BG8160005 Available to backorder	Nylon Insert Locknut 1/2-13	£0.97 £0.81
31	BG440013 Available to backorder	Control Throttle	£50.28 £41.90
32	BG440014 Available to backorder	Cable Throttle Control	£33.24 £27.70
33	BG8161042 Available to backorder	Nut Lock 3/8-16 Lt Wt Thin Zp	£1.20 £1.00
36	BG8041032 Available to backorder	Screwcap 5/16"-18 X 2" Zp	£0.97 £0.81
38	BG440045-4 Available to backorder	Divertor Front	£56.96 £47.47
39	BG8122064 Available to backorder	Screw Sm #10-24X1/2" Drill Point	£1.08 £0.90
40	BG440236 Available to backorder	Impeller Assembly 17"	£272.88 £227.40
41	BG440067-1-S Available to backorder	Grill Front Blower	£76.24 £63.53
42	BG810656 Available to backorder	Label Throttle Control	£3.71 £3.09
44	BG100346 Available to backorder	Label Read	£3.71 £3.09
46	BG810736 Available to backorder	Label Danger Flying Debris	£3.71 £3.09
47	BG440012 Available to backorder	Grip 1-1/4" Id X 13"	£6.00 £5.00
48	BG440016 Available to backorder	Label Force	£6.06 £5.05
