Billy Goat F1802V - Force Blower Main Diagram

Name: Billy Goat F1802V - Force Blower Main Diagram
SKU: f1802v_force_blower_main-group
Price: 0.61 GBP
Availability: InStock

Part No. f1802v_force_blower_main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat F1802V - Force Blower Main Diagram

Description

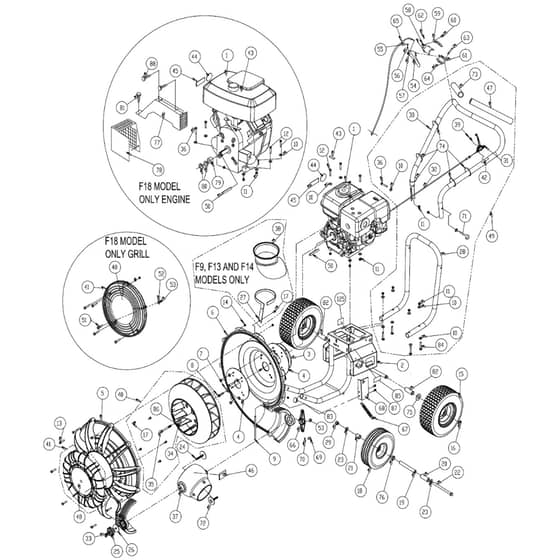

F1802V Parts Diagram

	Part No.	Details
7	BG8177013 Available to backorder	Washer Lock	£0.80 £0.67
10	BG8171003 Available to backorder	Washer 5/16 Flatwasher Z/P	£0.80 £0.67
11	BG8160002 Available to backorder	Nylon Insert Locknut 5/16-18	£0.97 £0.81
12	BG8041031 Available to backorder	Screwcap 5/16-18 X 175 Zp	£0.97 £0.81
13	BG8041008 Available to backorder	Screwcap 1/4-20 X 1 1/2	£1.03 £0.86
14	BG900455 Available to backorder	Nut Flange 1/4-20	£1.12 £0.93
15	BG440054 Available to backorder	Wheel & Tire 13" X 5" Pneumatic	£139.56 £116.30
16	BG850230 Available to backorder	Ring Retaining 3/4	£1.03 £0.86
18	BG400295 Available to backorder	Wheel Assy 10 " Pneumatic	£104.28 £86.90
22	BG8041240 Available to backorder	Screwcap 1/2-13 X 9 1/2"	£9.02 £7.52
23	BG8172011 In stock	Washer Flat 1/2" Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
25	BG811230 Available to backorder	Knob 3/8-16 Solid Hub	£8.69 £7.24
29	BG8160005 Available to backorder	Nylon Insert Locknut 1/2-13	£0.97 £0.81
31	BG440013 Available to backorder	Control Throttle	£50.29 £41.91
32	BG440178 Available to backorder	Cable Throttle Control	£39.56 £32.97
33	BG8161042 Available to backorder	Nut Lock 3/8-16 Lt Wt Thin Zp	£1.03 £0.86
36	BG8041032 Available to backorder	Screwcap 5/16"-18 X 2" Zp	£0.97 £0.81
39	BG8122064 Available to backorder	Screw Sm #10-24X1/2" Drill Point	£1.12 £0.93
42	BG810656 Available to backorder	Label Throttle Control	£3.71 £3.09
44	BG100346 Available to backorder	Label Read	£3.71 £3.09
46	BG810736 Available to backorder	Label Danger Flying Debris	£3.71 £3.09
47	BG440012 Available to backorder	Grip 1-1/4" Id X 13"	£6.20 £5.17
51	BG8041006 Available to backorder	Screwcap 1/4-20 X 1"	£0.97 £0.81
52	BG8171002 Available to backorder	Washer Flat 1/4	£0.80 £0.67
53	BG8160001 Available to backorder	Nut Lock 1/4"-20 Hex Zp	£0.97 £0.81
59	BG440116 Available to backorder	Plate Lock Diverter	£20.46 £17.05
65	BG440117 Available to backorder	Cable Assy	£33.34 £27.78
66	BG440121 Available to backorder	Diverter Pivot Adaptor	£6.43 £5.36
67	BG440130 Available to backorder	Spring Extension 0468 X 525	£8.05 £6.71
69	BG440124 Available to backorder	Pin Clevis 1/4 X 3/4	£1.28 £1.07
70	BG440193 Available to backorder	051 X 3/4" Hitch Pin Clip	£0.97 £0.81
71	BG440280 Available to backorder	Eyebolt Pigtail 5/16"-18 X 1 1/4"	£6.26 £5.22
73	BG440146 Available to backorder	Grip 1-1/4" Id X 95" Long	£9.02 £7.52
74	BG900407 Available to backorder	Ty-Wrap	£0.80 £0.67
75	BG850238 Available to backorder	Washer 765 Id X 125 Od X 06"	£1.40 £1.17
76	BG440055 Available to backorder	Force Wheel Bearing 751 Id	£17.89 £14.91
79	BG830112 Available to backorder	Spacer 1" Id X 2" Od X 0890 Tk	£27.52 £22.93
81	BG890359 Available to backorder	Screw Self Tap 1/4"-20 X 5/8"	£1.39 £1.16
83	BG791056 Available to backorder	Plug	£1.28 £1.07
86	BG8177012 Available to backorder	Washer Lock 3/8 St Med	£1.03 £0.86
87	BG840082 Available to backorder	Screw Plastite 1/4"-10 X 3/4" Hwh Zp	£1.28 £1.07
