Billy Goat F1802SPV - Force Blower Main Diagram

Name: Billy Goat F1802SPV - Force Blower Main Diagram
SKU: f1802spv_force_blower_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat F1802SPV - Force Blower Main Diagram

Description

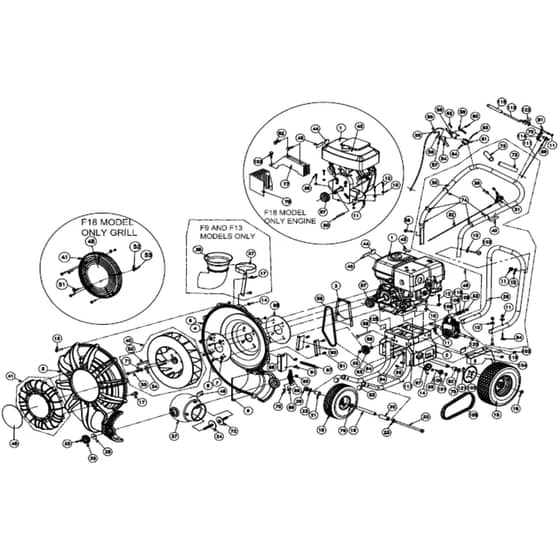

F1802SPV Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
7	BG8177013 Available to backorder	Washer Lock 3/8 S/T Med	£0.78 £0.65
10	BG8171003 Available to backorder	Washer 5/16 Flatwasher Z/P	£0.78 £0.65
11	BG8160002 Available to backorder	Nylon Insert Locknut 5/16-18	£0.97 £0.81
12	BG8041031 Available to backorder	Screwcap 5/16-18 X 175 Zp	£0.97 £0.81
13	BG8041008 Available to backorder	Screwcap 1/4-20 X 1 1/2	£1.20 £1.00
14	BG900455 Available to backorder	Nut Flange 1/4-20	£1.08 £0.90
15	BG440219 Available to backorder	Wheel & Tire 13" X 5" Pneumatic Sprocket	£138.96 £115.80
16	BG850230 Available to backorder	Ring Retaining 3/4	£1.00 £0.83
18	BG400295 Available to backorder	Wheel Assy 10 " Pneumatic	£104.30 £86.92
22	BG8041240 Available to backorder	Screwcap 1/2-13 X 9 1/2"	£8.72 £7.27
23	BG8172011 In stock	Washer Flat 1/2" Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
25	BG811230 Available to backorder	Knob 3/8-16 Solid Hub	£8.40 £7.00
29	BG8161044 Available to backorder	Nylon Insert Locknut 1/2-13Lt Wt Th Zp	£0.97 £0.81
31	BG440013 Available to backorder	Control Throttle	£50.28 £41.90
32	BG440178 Available to backorder	Cable Throttle Control	£39.60 £33.00
33	BG8161042 Available to backorder	Nut Lock 3/8-16 Lt Wt Thin Zp	£1.20 £1.00
36	BG8041032 Available to backorder	Screwcap 5/16"-18 X 2" Zp	£0.97 £0.81
39	BG8122064 Available to backorder	Screw Sm #10-24X1/2" Drill Point	£1.08 £0.90
42	BG810656 Available to backorder	Label Throttle Control	£3.71 £3.09
44	BG100346 Available to backorder	Label Read	£3.71 £3.09
46	BG810736 Available to backorder	Label Danger Flying Debris	£3.71 £3.09
51	BG8041006 Available to backorder	Screwcap 1/4-20 X 1" Hcs Zp	£0.97 £0.81
52	BG8171002 Available to backorder	Washer Flat 1/4	£0.78 £0.65
53	BG8160001 Available to backorder	Nut Lock 1/4"-20 Hex Zp	£0.97 £0.81
59	BG440116 Available to backorder	Plate Lock Diverter	£19.78 £16.48
65	BG440117 Available to backorder	Cable Assy	£32.22 £26.85
66	BG440121 Available to backorder	Diverter Pivot Adaptor	£6.43 £5.36
67	BG440130 Available to backorder	Spring Extension 0468 X 525	£8.05 £6.71
69	BG440124 Available to backorder	Pin Clevis 1/4 X 3/4	£1.28 £1.07
70	BG440193 Available to backorder	Hitch Pin Clip 051 X 3/4"	£0.97 £0.81
71	BG8177012 Available to backorder	Washer Lock 3/8 S/T Med	£1.20 £1.00
73	BG440146 Available to backorder	Grip 1-1/4" Id X 95" Long	£8.72 £7.27
74	BG900407 Available to backorder	Ty-Wrap	£0.78 £0.65
75	BG850238 Available to backorder	Washer 765 Id X 125 Od X06"	£1.08 £0.90
76	BG440055 Available to backorder	Force Wheel Bearing 751 Id	£17.34 £14.45
83	BG791056 Available to backorder	Plug	£1.28 £1.07
86	BG440215 Available to backorder	Belt 3L29	£25.68 £21.40
91	BG840082 Available to backorder	Screw Plastite 1/4-10 X 3/4 Hwh Zp	£1.28 £1.07
96	BG8024021 Available to backorder	Carriage Bolt 1/4"-20 X 3/4"	£0.97 £0.81
97	BG891025-S Available to backorder	Bearing 1/2" Steel Pressed Housing	£14.58 £12.15

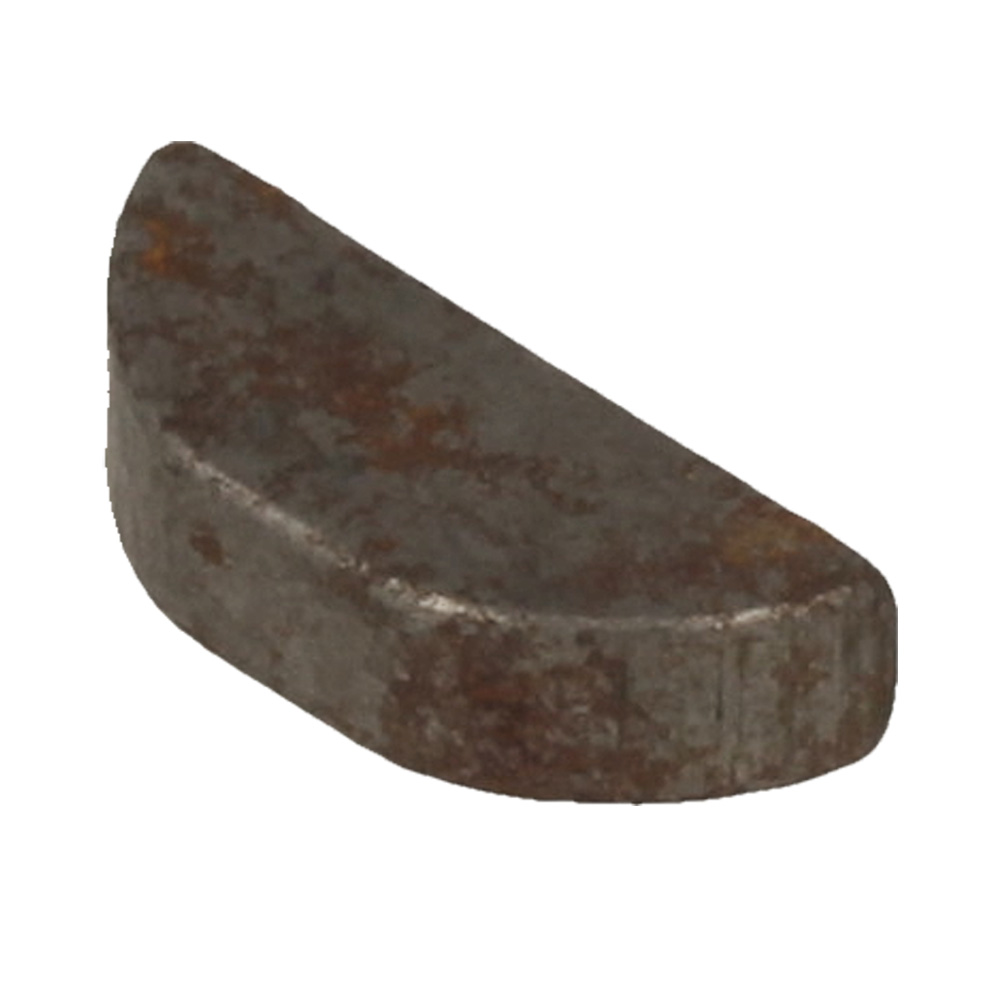

99	BG510180 Available to backorder	Key Woodruff 1/8" X 1/2"	£1.61 £1.34
100	BG891022 Available to backorder	Sprocket 8 Tooth	£19.08 £15.90

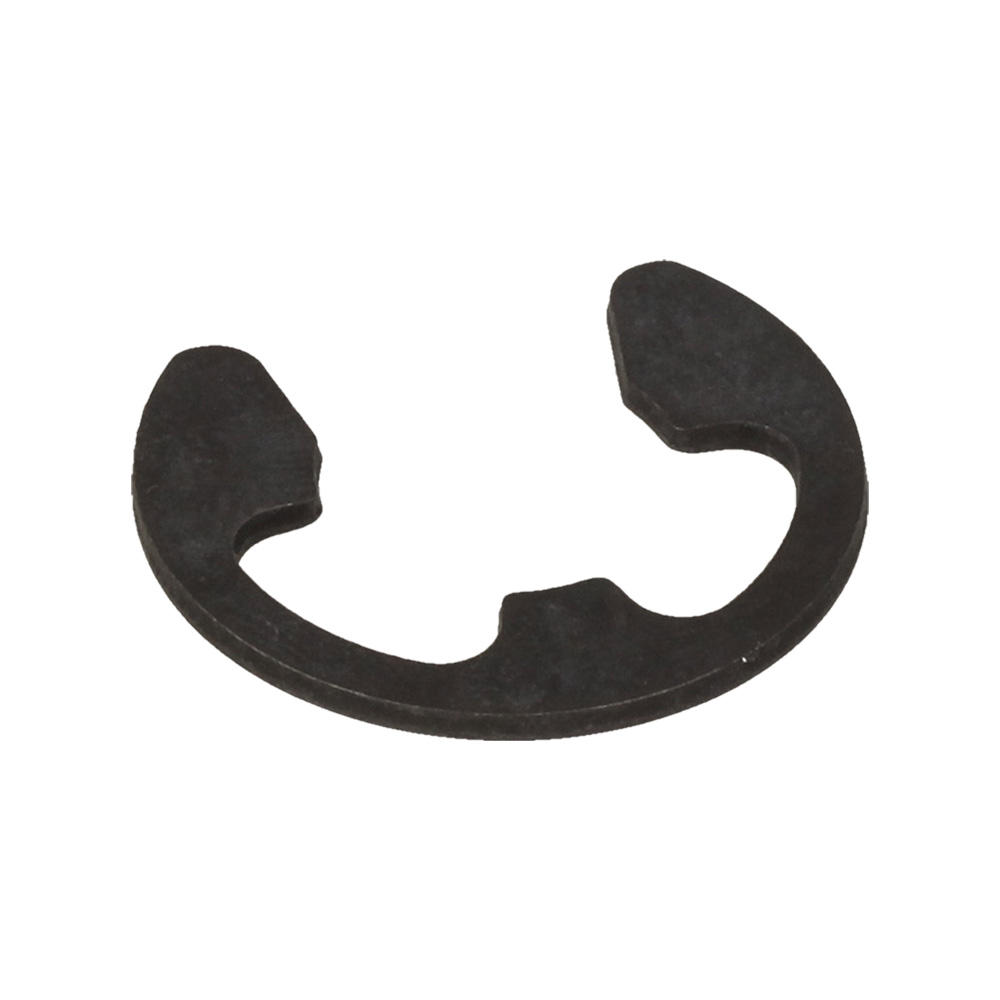

101	BG350146 Available to backorder	Retaining Ring 1/2"	£1.20 £1.00
103	BG890359 Available to backorder	Screw Self Tap 1/4"-20 X 5/8"	£1.34 £1.12
104	BG440207-S Available to backorder	Chain Guard Rh	£57.95 £48.29
104	BG440206-S In stock	Chain Guard Lh	Was £64.20 £53.50 Special Price £44.94 £37.45
105	BG440217 Available to backorder	Chain #43X44 Pitches	£11.21 £9.34

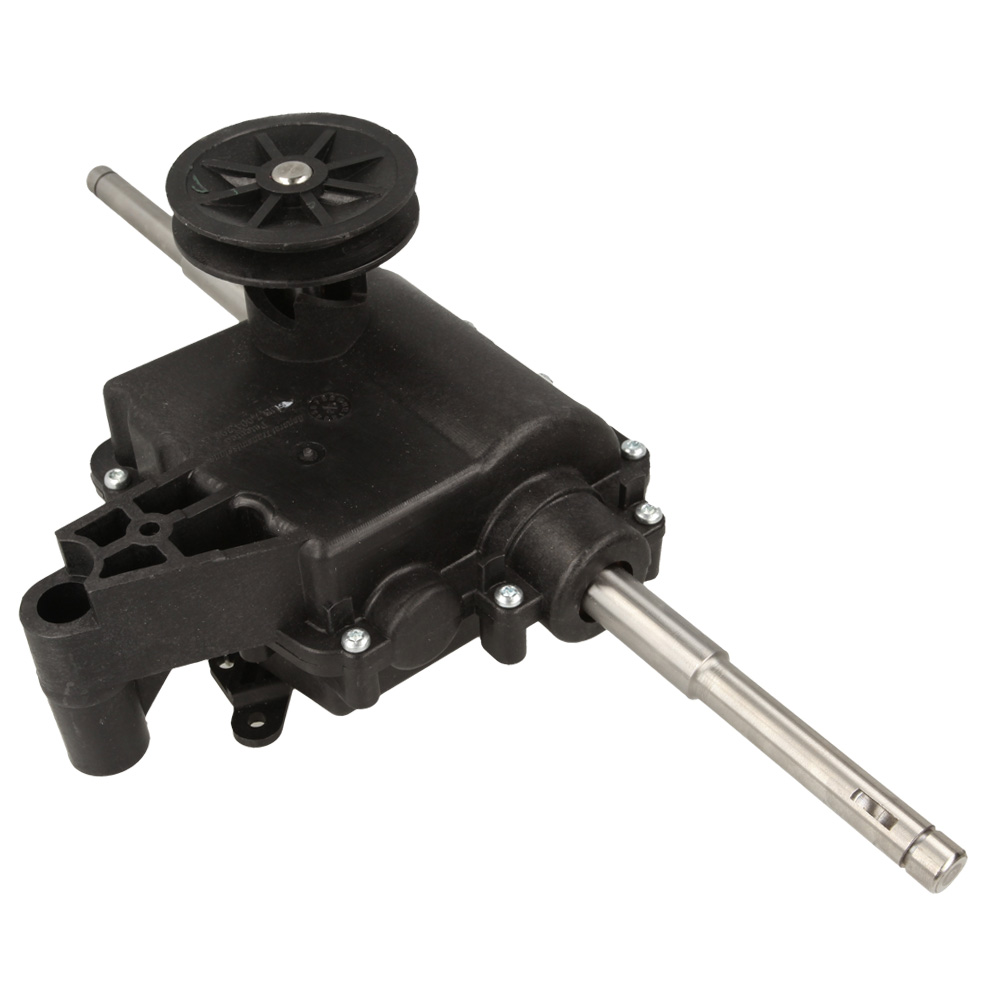

108	BG440216 Available to backorder	Trans Single Speed W/Clutch	£420.48 £350.40
109	BG8172009 Available to backorder	Washer 3/8" Sae	£1.28 £1.07
111	BG440243 Available to backorder	Clutch Cable Force Sp	£53.29 £44.41
120	BG900327 Available to backorder	Label Danger	£3.71 £3.09
123	BG440280 Available to backorder	Eyebolt Pigtail 5/16"-18 X 1 1/4"	£6.06 £5.05
