EXCEL 55 SQ B - 2013 - 290556021/S13 - Stiga Rotary Mower Transmission Diagram

Description

Stiga EXCEL 55 SQ B Parts Diagram

Product Name - EXCEL 55 SQ B

Model Year - 2013

Model Type - DML 554 W TR

Art.N - 290556021/S13

Engine Model - Briggs & Stratton 850 E series Ready Start

Be the first to review this product

0 product questions

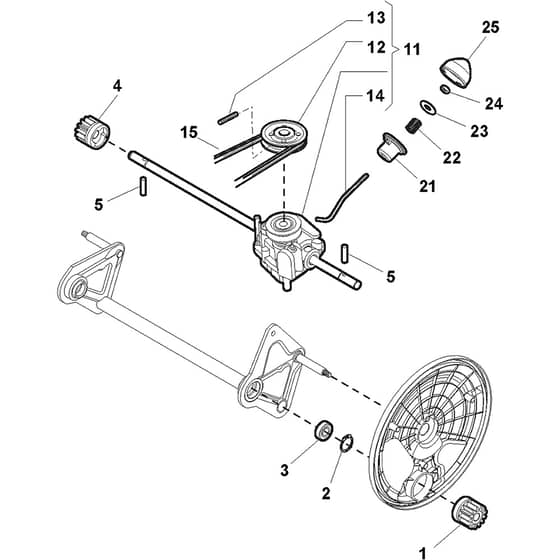

	Part No.	Details
1	MO122570132/0 Available to backorder	Left Pinion	£11.69 £9.74
2	MO112608600/0 In stock	Seeger	£1.55 £1.29
3	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
4	MO122570131/0 Available to backorder	Right Pinion	£11.69 £9.74
5	MO122753000/0 In stock	Pin	£1.55 £1.29
11	MO181003106/1 Available to backorder	Gear Box From 01-9-2011	£136.55 £113.79
11	MO181003103/0 Available to backorder	Gear Box To 31-8-2009	£165.50 £137.92
12	MO122601909/0 In stock	Pulley To 31-8-2009	£5.64 £4.70
25	MO322109550/0 Available to backorder	Rod Cup	£1.40 £1.17
