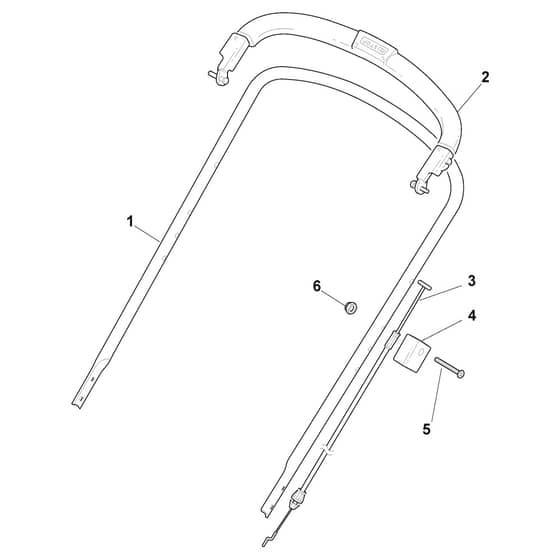

EU 474-B - 2013 - 292470023/CRO - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: EU 474-B - 2013 - 292470023/CRO - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: eu_474_b_292470023_cro_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Part No. eu_474_b_292470023_cro_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EU 474-B - 2013 - 292470023/CRO - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

Castel Garden EU 474-B Parts Diagram

Product Name - EU 474 - B

Model Year - 2013

Model Type - DI 474

Art.N - 292470023/CRO

Engine Model -

	Part No.	Details
1	MO381006618/1 Available to backorder	Handle. Upper Part	£50.69 £42.24
2	MO381003298/1 In stock	Lever. Engine Brake From 01-9-2004	£32.38 £26.98
3	MO181000685/0 Available to backorder	Cable. Thread Engine Brake From 01-9-2014	£13.16 £10.97
3	MO181000686/0 Available to backorder	Cable. Thread Engine Brake To 31-8-2014	£13.31 £11.09
4	MO322551685/0 In stock	Cable Holder Ø22 From S.N 20AA2WBH066504	£7.52 £6.27
5	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
6	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
