Toro eTimeCutter 107cm - 75642 (400000000 - 416299999) Seat Pan

Name: Toro eTimeCutter 107cm - 75642 (400000000 - 416299999) Seat Pan
SKU: etimecutter_107cm_75642_4416299999_seat_pan-group
Price: 0.4 GBP
Availability: InStock

Part No. etimecutter_107cm_75642_4416299999_seat_pan-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eTimeCutter 107cm - 75642 (400000000 - 416299999) Seat Pan

Description

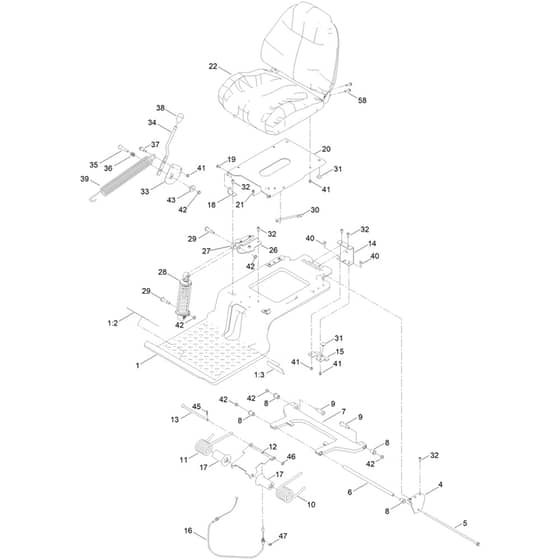

Toro eTimeCutter 107cm - 75642 (400000000 - 416299999) Seat Pan Parts Diagram

	Part No.	Details
1	HA147-7616 Available to backorder	[1.2] Decal-Danger [Lever Steer]	£16.61 £13.84
1	HA140-0357 Available to backorder	[1.3] Decal - Myride	£3.20 £2.67
1	HA147-7739 Available to backorder	Subframe Asm [Service]	£695.08 £579.23
4	HA138-7517 Available to backorder	Swing Arm Mount Bracket	£14.83 £12.36
5	HA138-7548 Available to backorder	Hex Head Flanged Screw	£17.32 £14.43
6	HA138-7549 Available to backorder	Spacer Tube	£28.45 £23.71
7	HA138-2563 Available to backorder	Swing Arm	£133.56 £111.30
8	HA138-2573 Available to backorder	Flange Bushing	£3.20 £2.67
9	HA138-2547 Available to backorder	Shoulder Bolt	£2.46 £2.05
10	HA137-1983 Available to backorder	Left Hand Torsion Spring	£37.12 £30.93
11	HA137-7018 Available to backorder	Right Hand Torsion Spring	£35.88 £29.90
12	HA138-7566-03 Available to backorder	Adjuster Plate	£24.74 £20.62
13	HA138-9813 Available to backorder	Adjustment Rod	£6.04 £5.03
14	HA138-9788 Available to backorder	Cable Bracket	£14.83 £12.36
15	HA139-2361-03 Available to backorder	Bracket Assembly	£8.40 £7.00
16	HA138-9812 Available to backorder	Myride Adjustment Cable	£47.00 £39.17
17	HA138-9776 Available to backorder	Spring Retainer	£3.71 £3.09
18	HA138-7522 Available to backorder	Seat Bracket	£3.71 £3.09
19	HA120-7950 Available to backorder	Screw	£2.21 £1.84
20	HA147-7727-03 Available to backorder	Pan-Seat [Sk220] [Black]	£72.96 £60.80
21	HA135-2015 Available to backorder	Shoulder Screw	£3.83 £3.19
22	HA147-8761 Available to backorder	Seat Asm [Sk220-2Pc. Service]	£496.97 £414.14
26	HA133-9318-03 Available to backorder	Left Hand Upper Shock Mount Bracket	£18.56 £15.47
27	HA133-9319-03 Available to backorder	Right Hand Shock Mount Upper Bracket	£18.56 £15.47
28	HA147-7746 Available to backorder	Shock.Spring Asm [Front]	£149.52 £124.60
29	HA136-7198 Available to backorder	Shoulder Bolt	£1.84 £1.53
30	HA138-2596 Available to backorder	Seat Prop Rod	£12.35 £10.29
31	HA135-0505 Available to backorder	Bumper-Seat	£1.46 £1.22
32	HA138-9753 Available to backorder	Screw	£0.48 £0.40
33	HA138-9814 Available to backorder	Cam Pulley	£35.88 £29.90
34	HA138-9822 Available to backorder	Adjustment Lever	£14.83 £12.36
35	HA92-1057 Available to backorder	Shoulder Bolt	£3.95 £3.29
36	HA139-5858 Available to backorder	Compression Spring	£1.97 £1.64
37	HA140-3759 Available to backorder	Shoulder Bolt	£1.46 £1.22
38	HA140-5176 Available to backorder	Mr Knob	£12.35 £10.29
39	HA138-9848 Available to backorder	Extension Spring	£61.86 £51.55
40	HA139-1716 Available to backorder	Hex Head (Hh) Screw	£0.72 £0.60
41	HA119-4041 Available to backorder	Hex Flange (Hf) Nut	£0.83 £0.69
42	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
43	HA139-5800 Available to backorder	Flange Bushing	£0.62 £0.52
45	HA137-3083 Available to backorder	Hair Pin	£0.48 £0.40
46	HA115-1166 Available to backorder	Flat Washer	£7.14 £5.95
47	HA32120-47 Available to backorder	External Retaining Ring	£1.22 £1.02
58	HA119-4036 Available to backorder	Screw-Hhf [.312-18 X 1.25]	£0.89 £0.74
