Toro eTimeCutter 107cm - 75642 (400000000 - 416299999) Electrical

Description

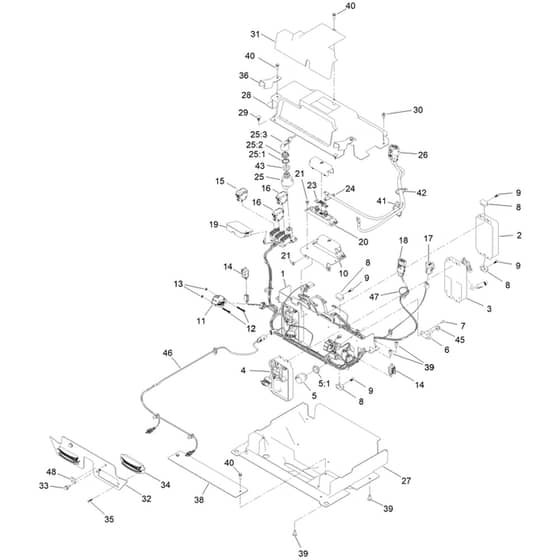

Toro eTimeCutter 107cm - 75642 (400000000 - 416299999) Electrical Parts Diagram

	Part No.	Details
1	HA147-7667-03 Available to backorder	Mount-Controllers [Black]	£94.92 £79.10
2	HA147-7631 Available to backorder	Controller-Master	£383.45 £319.54
3	HA147-7635 Available to backorder	Controller-Traction	£383.45 £319.54
4	HA147-7633 Available to backorder	Controller-Deck	£383.45 £319.54
5	HA80-9330 Available to backorder	Audio Alarm Asm	£224.16 £186.80
5	HA104-5107 Available to backorder	[5.1] Plastic Knurled Nut	£6.56 £5.47
6	HA110-8823 Available to backorder	Block-Junction [Black]	£69.36 £57.80
7	HA105-6849 Available to backorder	Thread Forming Screw	£0.85 £0.71
8	HA145-0586 Available to backorder	Clip-Controller	£0.97 £0.81
10	HA147-5200-03 Available to backorder	Mount-Holder. Fuse [Black]	£29.94 £24.95
11	HA140-8373 Available to backorder	Sensor	£245.28 £204.40
12	HA147-7729 Available to backorder	Screw-Hwh[#10-24X1.5. Stl. Cz]	£0.72 £0.60
13	HA147-7730 Available to backorder	Nut-Hex Ni[10-24. Jam. Gr N2. Cz]	£0.62 £0.52
14	HA110-6765 Available to backorder	Ignition Switch	£16.08 £13.40
15	HA139-6368 Available to backorder	Ignition Switch	£39.58 £32.98
16	HA145-0467 Available to backorder	Switch-Rocker On- None- On	£39.94 £33.28
17	HA140-7955 Available to backorder	Usb Power Port	£58.24 £48.53
18	HA139-6393 Available to backorder	Harness-Wire. 2 Blade [Main]	£1,150.34 £958.62
19	HA147-2198 Available to backorder	Display	£177.00 £147.50
20	HA145-4958 Available to backorder	Holder-Fuse [50.9mm. M8. 40-500A]	£42.66 £35.55
21	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
23	HA122-2559 Available to backorder	Fuse-100 Amp [50.9mm. 70Vdc]	£26.52 £22.10
24	HA147-5340 Available to backorder	Busbar-2. Switch [Copper]	£23.29 £19.41
25	HA122-2513 Available to backorder	Switch-Ignition. Suns [Hypercell]	£50.52 £42.10
25	HA122-2704 Available to backorder	[25.2] Nut-Face. M22 (Plastic)	£3.25 £2.71
25	HA121-5162 Available to backorder	[25.3] Set-Key. Ignition	£50.14 £41.78
26	HA147-7584 Available to backorder	Harness-Wire. Power Cable	£261.12 £217.60
27	HA147-7668 Available to backorder	Cover-Bottom	£90.12 £75.10
28	HA147-7670 Available to backorder	Cover-Controller	£48.25 £40.21
29	HA117-2382 Available to backorder	Plug-Plastic[Pa66. Fir Tree]	£0.85 £0.71
30	HA120-7950 Available to backorder	Screw	£2.21 £1.84
31	HA147-7680 Available to backorder	Cover-Outer	£18.56 £15.47
32	HA139-7488-01 Available to backorder	Lights Head Mount - Red	£49.51 £41.26
33	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
34	HA139-5825 Available to backorder	Led Light Assembly	£49.51 £41.26
35	HA94-4496 Available to backorder	Phillips Pan Head (Pph) Screw	£1.09 £0.91
36	HA147-7681-03 Available to backorder	Cover-Sensor [Black]	£13.31 £11.09
38	HA147-7719-03 Available to backorder	Cover-Wire [Black]	£24.95 £20.79
39	HA138-9753 Available to backorder	Screw	£0.48 £0.40
40	HA137-3099 In stock	Hex Washer Head Plastite Screw	Was £1.13 £0.94 Special Price £0.60 £0.50
41	HA32180-078 Available to backorder	Clip-Edge [W.Tie. Parallel]	£7.88 £6.57
42	HA3290-378 Available to backorder	Cable Tie	£0.97 £0.81
43	HA145-7110 Available to backorder	Adapter-Switch. Key	£5.29 £4.41
45	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
46	HA147-8762 Available to backorder	Harness-Wire. Led Lights [Main]	£86.16 £71.80
47	HA32180-030 Available to backorder	Tie Clip	£7.18 £5.98
48	HA147-0290 Available to backorder	Decal-Light. Warning	£9.48 £7.90
