Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Seat Pan

Name: Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Seat Pan
SKU: etimecutter_107cm_75642_418178767999999999_seat_pan-group
Price: 0.46 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Seat Pan

Description

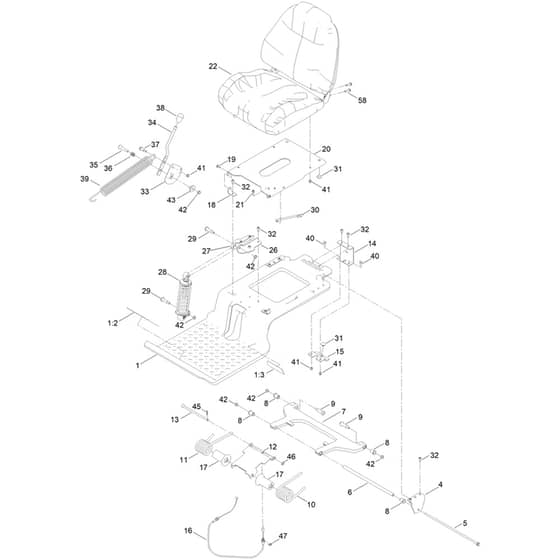

Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Seat Pan Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA140-0357 Available to backorder	[1.3] Decal - Myride	£3.10 £2.58
1	HA147-7739 Available to backorder	Subframe Asm [Service]	£772.80 £644.00
1	HA147-7616 Available to backorder	[1.2] Decal-Danger [Lever Steer]	£16.06 £13.38
4	HA138-7517 Available to backorder	Swing Arm Mount Bracket	£14.34 £11.95
5	HA138-7548 Available to backorder	Hex Head Flanged Screw	£16.74 £13.95
6	HA138-7549 Available to backorder	Spacer Tube	£27.50 £22.92
7	HA138-2563 Available to backorder	Swing Arm	£130.30 £108.58
8	HA138-2573 Available to backorder	Flange Bushing	£3.10 £2.58
9	HA138-2547 Available to backorder	Shoulder Bolt	£2.38 £1.98
10	HA137-1983 Available to backorder	Left Hand Torsion Spring	£35.88 £29.90
11	HA137-7018 Available to backorder	Right Hand Torsion Spring	£34.68 £28.90
12	HA138-7566-03 Available to backorder	Adjuster Plate	£23.92 £19.93
13	HA138-9813 Available to backorder	Adjustment Rod	£5.84 £4.87
14	HA138-9788 Available to backorder	Cable Bracket	£14.34 £11.95
15	HA139-2361-03 Available to backorder	Bracket Assembly	£8.12 £6.77
16	HA138-9812 Available to backorder	Myride Adjustment Cable	£45.44 £37.87
17	HA138-9776 Available to backorder	Spring Retainer	£3.58 £2.98
18	HA138-7522 Available to backorder	Seat Bracket	£3.58 £2.98
19	HA120-7950 Available to backorder	Screw	£2.14 £1.78
20	HA147-7727-03 Available to backorder	Pan-Seat [Sk220] [Black]	£72.98 £60.82
21	HA135-2015 Available to backorder	Shoulder Screw	£3.70 £3.08
22	HA147-8761 Available to backorder	Seat Asm [Sk220-2Pc. Service]	£552.00 £460.00
26	HA133-9318-03 Available to backorder	Left Hand Upper Shock Mount Bracket	£17.94 £14.95
27	HA133-9319-03 Available to backorder	Right Hand Shock Mount Upper Bracket	£17.94 £14.95
28	HA147-7746 Available to backorder	Shock.Spring Asm [Front]	£149.54 £124.62
29	HA136-7198 Available to backorder	Shoulder Bolt	£1.78 £1.48
30	HA138-2596 Available to backorder	Seat Prop Rod	£11.94 £9.95
31	HA135-0505 Available to backorder	Bumper-Seat	£1.70 £1.42
32	HA138-9753 Available to backorder	Screw	£0.55 £0.46
33	HA138-9814 Available to backorder	Cam Pulley	£34.68 £28.90
34	HA138-9822 Available to backorder	Adjustment Lever	£14.34 £11.95
35	HA92-1057 Available to backorder	Shoulder Bolt	£3.82 £3.18
36	HA139-5858 Available to backorder	Compression Spring	£1.90 £1.58
37	HA140-3759 Available to backorder	Shoulder Bolt	£1.70 £1.42
38	HA140-5176 Available to backorder	Mr Knob	£11.94 £9.95
39	HA138-9848 Available to backorder	Extension Spring	£59.80 £49.83
40	HA139-1716 Available to backorder	Hex Head (Hh) Screw	£0.84 £0.70
41	HA119-4041 Available to backorder	Hex Flange (Hf) Nut	£0.91 £0.76
42	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.10 £0.92
43	HA139-5800 Available to backorder	Flange Bushing	£0.72 £0.60
45	HA137-3083 Available to backorder	Hair Pin	£0.55 £0.46
46	HA115-1166 Available to backorder	Flat Washer	£6.56 £5.47
47	HA32120-47 Available to backorder	External Retaining Ring	£1.42 £1.18
58	HA119-4036 Available to backorder	Screw-Hhf [.312-18 X 1.25]	£0.86 £0.72
