Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Electrical

Name: Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Electrical
SKU: etimecutter_107cm_75642_418178767999999999_electrical-group
Price: 0.42 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Electrical

Description

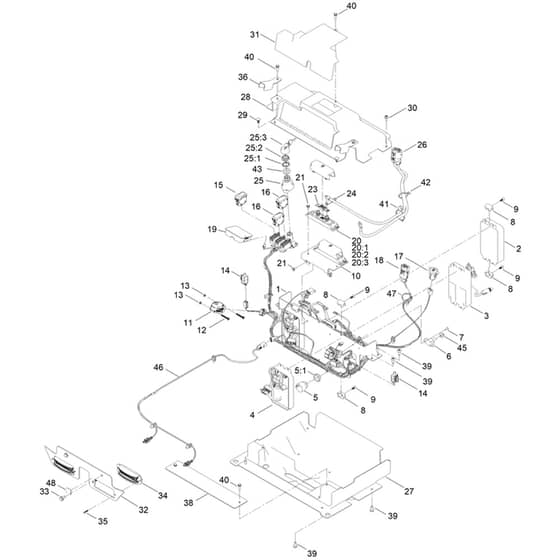

Toro eTimeCutter 107cm - 75642 (418178767 - 999999999) Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA147-7667-03 Available to backorder	Mount-Controllers [Black]	£94.92 £79.10
2	HA147-7631 Available to backorder	Controller-Master	£426.00 £355.00
3	HA147-7635 Available to backorder	Controller-Traction	£426.00 £355.00
4	HA147-7633 Available to backorder	Controller-Deck	£426.00 £355.00
5	HA104-5107 Available to backorder	[5.1] Plastic Knurled Nut	£6.34 £5.28
5	HA80-9330 Available to backorder	Audio Alarm Asm	£204.36 £170.30
6	HA110-8823 Available to backorder	Block-Junction [Black]	£69.30 £57.75
7	HA105-6849 Available to backorder	Thread Forming Screw	£0.98 £0.82
8	HA145-0586 Available to backorder	Clip-Controller	£0.94 £0.78
10	HA147-5200-03 Available to backorder	Mount-Holder. Fuse [Black]	£28.94 £24.12
11	HA140-8373 Available to backorder	Sensor	£230.16 £191.80
12	HA147-7729 Available to backorder	Screw-Hwh[#10-24X1.5. Stl. Cz]	£0.70 £0.58
13	HA147-7730 Available to backorder	Nut-Hex Ni[10-24. Jam. Gr N2. Cz]	£0.60 £0.50
14	HA110-6765 Available to backorder	Ignition Switch	£15.54 £12.95
15	HA139-6368 Available to backorder	Ignition Switch	£38.26 £31.88
16	HA145-0467 Available to backorder	Switch-Rocker On- None- On	£38.60 £32.17
17	HA140-7955 Available to backorder	Usb Power Port	£54.70 £45.58
18	HA139-6393 Available to backorder	Harness-Wire. 2 Blade [Main]	£1,278.00 £1,065.00
19	HA147-2198 Available to backorder	Display	£176.96 £147.47
20	HA136-8682 Available to backorder	[20.1] Lock Washer	£0.55 £0.46
20	HA117-4059 Available to backorder	[20.3] Hex Nut	£2.98 £2.48
20	HA161-6249 Available to backorder	Holder-Fuse [50.9mm. M8. 40-500A]	£45.04 £37.53
20	HA3256-74 Available to backorder	[20.2] Flat Washer	£0.50 £0.42
21	HA32144-4 In stock	Hex Washer Head (Hwh) Screw	Was £1.68 £1.40 Special Price £0.60 £0.50
23	HA122-2559 Available to backorder	Fuse-100 Amp [50.9mm. 70Vdc]	£25.64 £21.37
24	HA147-5340 Available to backorder	Busbar-2. Switch [Copper]	£22.52 £18.77
25	HA122-2704 Available to backorder	[25.2] Nut-Face. M22 (Plastic)	£3.14 £2.62
25	HA121-5162 Available to backorder	[25.3] Set-Key. Ignition	£47.08 £39.23
25	HA122-2513 Available to backorder	Switch-Ignition. Suns [Hypercell]	£48.84 £40.70
26	HA147-7584 Available to backorder	Harness-Wire. Power Cable	£245.04 £204.20
27	HA147-7668 Available to backorder	Cover-Bottom	£90.08 £75.07
28	HA147-7670 Available to backorder	Cover-Controller	£46.64 £38.87
29	HA117-2382 Available to backorder	Plug-Plastic[Pa66. Fir Tree]	£0.98 £0.82
30	HA120-7950 Available to backorder	Screw	£2.14 £1.78
31	HA147-7680 Available to backorder	Cover-Outer	£17.94 £14.95
32	HA139-7488-01 Available to backorder	Lights Head Mount - Red	£47.86 £39.88
33	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
34	HA139-5825 Available to backorder	Led Light Assembly	£47.86 £39.88
35	HA94-4496 Available to backorder	Phillips Pan Head (Pph) Screw	£1.27 £1.06
36	HA147-7681-03 Available to backorder	Cover-Sensor [Black]	£12.86 £10.72
38	HA147-7719-03 Available to backorder	Cover-Wire [Black]	£24.12 £20.10
39	HA138-9753 Available to backorder	Screw	£0.55 £0.46
40	HA137-3099 In stock	Hex Washer Head Plastite Screw	Was £1.13 £0.94 Special Price £0.60 £0.50
41	HA32180-078 Available to backorder	Clip-Edge [W.Tie. Parallel]	£7.22 £6.02
42	HA3290-378 Available to backorder	Cable Tie	£1.13 £0.94
43	HA145-7110 Available to backorder	Adapter-Switch. Key	£5.12 £4.27
45	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.10 £0.92
46	HA147-8762 Available to backorder	Harness-Wire. Led Lights [Main]	£86.12 £71.77
47	HA32180-030 Available to backorder	Tie Clip	£6.56 £5.47
48	HA147-0290 Available to backorder	Decal-Light. Warning	£9.16 £7.63
