Toro eTimeCutter 107cm - 75642 (416300000 - 417299999) Deck and Decal

Description

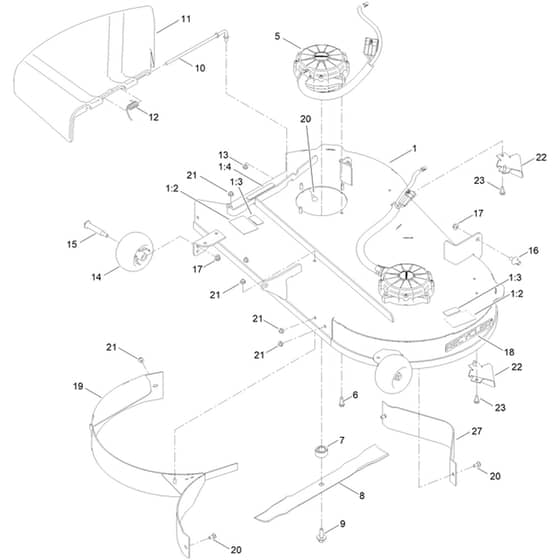

Toro eTimeCutter 107cm - 75642 (416300000 - 417299999) Deck and Decal Parts Diagram

	Part No.	Details
1	HA130-0731 Available to backorder	[1.4] Danger Decal	£4.20 £3.50
1	HA147-7615 Available to backorder	[1.2] Decal-Danger. Deck	£5.94 £4.95
1	HA147-7654 Available to backorder	42 In Deck And Decal Asm [Fab Service]	£736.78 £613.98
5	HA140-8379 Available to backorder	Motor-Deck	£516.66 £430.55
6	HA136-7174 Available to backorder	Screw-Thd Roll. Hwh [5.16-18 X 1.00. Cz]	£1.60 £1.33
7	HA140-8361 Available to backorder	Driver-Blade	£13.61 £11.34
8	HA144-1948-03 Available to backorder	Blade-21.60 In. Combination [Black]	£29.69 £24.74
9	HA145-0411 Available to backorder	Blade Bolt	£3.83 £3.19
10	HA137-2019 Available to backorder	Pivot Rod	£14.83 £12.36
11	HA138-7502 Available to backorder	Discharge Deflector	£71.76 £59.80
12	HA138-7268 Available to backorder	Torsion Spring	£3.08 £2.57
13	HA121-4600 Available to backorder	Hex Nut	£1.34 £1.12
14	HA1-603299 Available to backorder	Anti-Scalp & Wear Bar Kit	£28.45 £23.71
15	HA139-2551 Available to backorder	Shoulder Bolt	£6.56 £5.47
16	HA139-5871 Available to backorder	Deck Pin	£2.83 £2.36
17	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
18	HA140-4184 Available to backorder	Decal - Recycler	£4.20 £3.50
19	HA147-7678-03 Available to backorder	Baffle-Recycling	£312.00 £260.00
20	HA139-2630 Available to backorder	Carriage Bolt	£1.60 £1.33
21	HA119-4041 Available to backorder	Hex Flange (Hf) Nut	£0.83 £0.69
22	HA119-3389-03 Available to backorder	Flanged Kicker	£33.41 £27.84
23	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
27	HA161-6305-03 Available to backorder	Deflector-42" [Black]	£54.43 £45.36
