Toro eSuper Recycler eC53AST 53cm - 21695 (400000000 - 414999999) Handle

Name: Toro eSuper Recycler eC53AST 53cm - 21695 (400000000 - 414999999) Handle
SKU: esuper_recycler_ec53ast_53cm_21695_4414999999_handle-group
Price: 0.36 GBP
Availability: InStock

Part No. esuper_recycler_ec53ast_53cm_21695_4414999999_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eSuper Recycler eC53AST 53cm - 21695 (400000000 - 414999999) Handle

Description

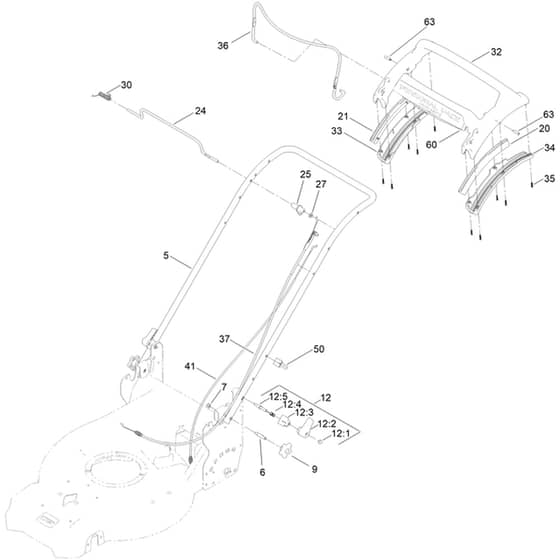

Toro eSuper Recycler eC53AST 53cm - 21695 (400000000 - 414999999) Handle Parts Diagram

	Part No.	Details
5	HA144-6516-05 Available to backorder	Handle-Curved [Blk-Txt]	£75.36 £62.80
6	HA139-6588 Available to backorder	Handle Shoulder Bolt	£1.97 £1.64
7	HA119-4038 In stock	Hex Nut	£0.56 £0.47
9	HA117-5976 In stock	Handle Knob	£3.32 £2.77
12	HA138-3249 Available to backorder	Spring Anchor	£13.61 £11.34
12	HA140-4157 Available to backorder	[12.1] 5.16 Push Nut	£1.84 £1.53
12	HA115-2858 Available to backorder	[12.4] Compression Spring	£4.08 £3.40
12	HA140-4158 Available to backorder	[12.5] Rod-Release	£1.46 £1.22
20	HA140-2367 Available to backorder	Left Hand (Lh) Curved Guide	£6.56 £5.47
21	HA140-2366 Available to backorder	Right Hand Curved Guide	£6.56 £5.47
24	HA139-5464 Available to backorder	Traction Control Rod	£8.65 £7.21
25	HA139-6554 Available to backorder	Rear Wheel Drive (Rwd) Traction Lever	£2.96 £2.47
27	HA120-9683 Available to backorder	Washer-Plain [Typ A Nar. 5.16. Stl. Cz]	£0.43 £0.36
30	HA140-4194 Available to backorder	Torsion Spring	£1.97 £1.64
32	HA139-6569 Available to backorder	Curved Handle (Personal Pace)	£38.36 £31.97
33	HA139-6567 Available to backorder	Right Hand Bottom Handle	£4.45 £3.71
34	HA139-6568 Available to backorder	Left Hand (Lh) Bottom Handle	£4.45 £3.71
35	HA94-4496 Available to backorder	Phillips Pan Head (Pph) Screw	£1.09 £0.91
36	HA145-5879-03 Available to backorder	Bail Brake	£17.32 £14.43
37	HA139-6594 In stock	Brake Cable	£17.44 £14.53
41	HA139-6595 In stock	Rear Wheel Drive (Rwd) Traction Cable	£17.44 £14.53
50	HA114-7988 Available to backorder	Cable Guide	£3.20 £2.67
60	HA145-1459 Available to backorder	Decal - Handle	£13.61 £11.34
63	HA139-6577 Available to backorder	Handle Pin	£1.09 £0.91
