Toro eSuper Recycler eC53AST 53cm - 21695 (400000000 - 414999999) Frame

Description

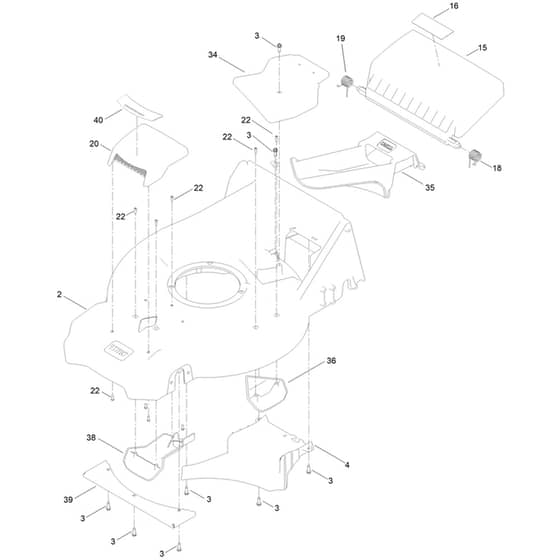

Toro eSuper Recycler eC53AST 53cm - 21695 (400000000 - 414999999) Frame Parts Diagram

	Part No.	Details
2	HA145-5836 Available to backorder	Housing Assembly	£370.68 £308.90
3	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
4	HA144-0233 Available to backorder	Ramp-Discharge	£18.56 £15.47
15	HA139-5477 Available to backorder	Door-Rear	£23.51 £19.59
16	HA145-1454 Available to backorder	60V Walk Behind. Self Propelled Mower Warning Decal	£5.65 £4.71
18	HA139-5478 Available to backorder	Left Hand (Lh) Torsion Spring	£1.84 £1.53
19	HA139-5479 Available to backorder	Right Hand Torsion Spring	£1.84 £1.53
20	HA144-6531 Available to backorder	Asm-Cover. Top Intake	£12.35 £10.29
22	HA139-1703 Available to backorder	Phillips Pan Head (Pph) Plastic Screw	£0.48 £0.40
34	HA144-0234 Available to backorder	Cover-Belt. Top	£12.35 £10.29
35	HA144-0236 Available to backorder	Mulch Plug	£18.56 £15.47
36	HA144-0237 Available to backorder	Kicker-Housing	£5.66 £4.72
38	HA144-6464 Available to backorder	Cover-Intake. Bottom	£6.66 £5.55
39	HA144-0235-03 Available to backorder	Plate-Cover. Ce [Black]	£23.29 £19.41
40	HA145-5606 Available to backorder	Decal-Cover. Intake (Ce)	£5.44 £4.53
