Toro eSuper Recycler eC48A 48cm - 21848 (400000000 - 409411873) Motor Module No. 140-4213

Name: Toro eSuper Recycler eC48A 48cm - 21848 (400000000 - 409411873) Motor Module No. 140-4213
SKU: esuper_recycler_ec48a_48cm_21848_449411873_motor_module_no_140_4
Price: 0.29 GBP
Availability: InStock

Part No. esuper_recycler_ec48a_48cm_21848_449411873_motor_module_no_140_4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eSuper Recycler eC48A 48cm - 21848 (400000000 - 409411873) Motor Module No. 140-4213

Description

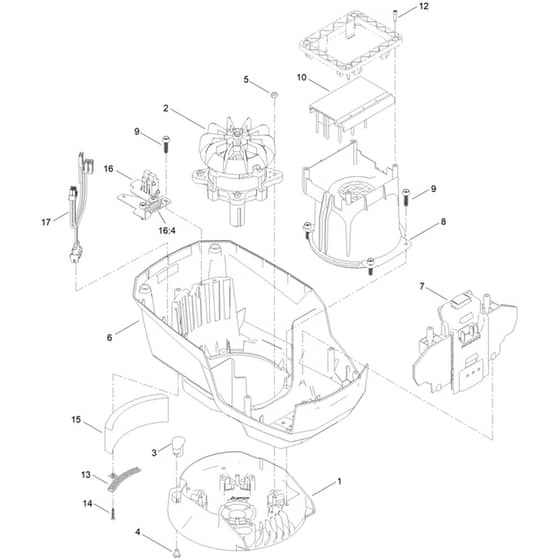

Toro eSuper Recycler eC48A 48cm - 21848 (400000000 - 409411873) Motor Module No. 140-4213 Parts Diagram

	Part No.	Details
1	HA139-6628 Available to backorder	Motor Mount Base	£42.06 £35.05
2	HA138-6661 Available to backorder	Motor. 60 Volt [1.5Kw]	£361.44 £301.20
3	HA131-9732 Available to backorder	Motor Mount Insert	£16.08 £13.40
4	HA137-4795 Available to backorder	Screw	£0.35 £0.29
6	HA139-6631 Available to backorder	Lower Shroud	£51.97 £43.31
7	HA139-6632 Available to backorder	Battery Receiver Assembly	£43.31 £36.09
8	HA139-6633 Available to backorder	Motor Shroud	£30.94 £25.78
9	HA130-6658 Available to backorder	Plastic Flange Screw	£1.09 £0.91
10	HA134-5078 Available to backorder	60V Motor Controller	£207.36 £172.80
12	HA139-6642 Available to backorder	Screw	£0.48 £0.40
13	HA139-6635 Available to backorder	Foam Bracket	£5.29 £4.41
14	HA138-3273 Available to backorder	Phillips Pan Head (Pph) Plastic Screw	£0.35 £0.29
15	HA139-6636 Available to backorder	Foam	£3.71 £3.09
16	HA133-1918 Available to backorder	Bail Switch Assembly	£58.16 £48.47
16	HA104-6478 Available to backorder	[16.4] Extension Spring	£22.31 £18.59
17	HA139-6637 Available to backorder	Wire Harness	£24.74 £20.62
