Toro eSuper Recycler eC48A 48cm - 21848 (411700000 - 417999999) Housing

Name: Toro eSuper Recycler eC48A 48cm - 21848 (411700000 - 417999999) Housing
SKU: esuper_recycler_ec48a_48cm_21848_4117417999999_housing-group
Price: 0.78 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro eSuper Recycler eC48A 48cm - 21848 (411700000 - 417999999) Housing

Description

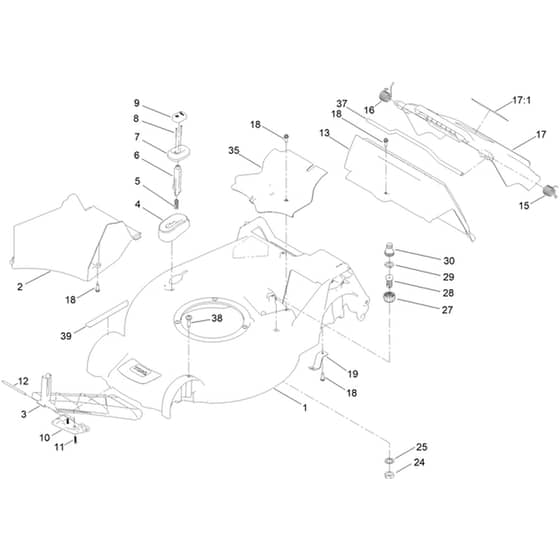

Toro eSuper Recycler eC48A 48cm - 21848 (411700000 - 417999999) Housing Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA117-4093 Available to backorder	Housing Assembly	£306.36 £255.30
2	HA117-4063 Available to backorder	Discharge Ramp	£32.30 £26.92
3	HA117-4064 Available to backorder	Recycle Door	£19.12 £15.93
4	HA117-4065 Available to backorder	Recycle Door Cover	£9.56 £7.97
5	HA117-1031 Available to backorder	Compression Spring	£3.34 £2.78
6	HA110-7129 Available to backorder	Recycle Latch	£3.22 £2.68
7	HA110-7136 Available to backorder	Knob Housing	£2.14 £1.78
8	HA110-7143 Available to backorder	Plastic Screw	£1.30 £1.08
9	HA119-2254 Available to backorder	Recycle Knob	£3.22 £2.68
10	HA119-2262 Available to backorder	Recycle Door Hinge	£9.56 £7.97
12	HA119-2263 Available to backorder	Hinge Pin	£5.62 £4.68
13	HA114-2668 Available to backorder	Chute	£44.26 £36.88
15	HA115-2859 Available to backorder	Torsion Spring	£5.84 £4.87
16	HA114-7924 Available to backorder	Torsion Spring	£3.59 £2.99
17	HA144-6373 Available to backorder	Rear Door Assembly	£28.70 £23.92
17	HA145-1454 Available to backorder	[17.1] 60V Walk Behind. Self Propelled Mower Warning Decal	£5.28 £4.40
18	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.38 £1.98
19	HA138-3230 Available to backorder	Traction Cable Bracket	£12.52 £10.43
24	HA3218-6 Available to backorder	Jam Nut	£1.15 £0.96
25	HA3254-5 Available to backorder	5.8 Lock Washer	£0.94 £0.78
27	HA112-6401 Available to backorder	Washout Port Hose Coupling	£2.86 £2.38
28	HA112-6400 Available to backorder	Washout Port	£5.38 £4.48
29	HA112-6438 Available to backorder	Washout Port Seal Washer	£1.86 £1.55
30	HA112-6437 Available to backorder	Quick Connect Adapter	£14.34 £11.95
35	HA117-4062 Available to backorder	Belt Cover For Recycler Mower	£19.12 £15.93
37	HA117-9378 Available to backorder	Deflector Rod	£41.86 £34.88
38	HA139-1693 Available to backorder	Screw-Shoulder. Bhtf [5.16-18 X 1.0]	£2.86 £2.38
39	HA119-2283 Available to backorder	Height Of Cut (Hoc) Decal	£7.88 £6.57
