ESTATE Pro 9122 XWSY - 2020-2021 - 2T1535381/ST1P - Stiga Ride On Mower Seat Diagram

Description

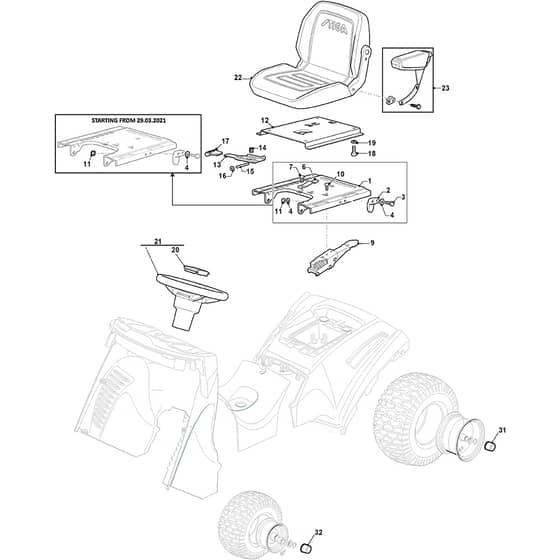

Stiga ESTATE Pro 9122 XWSY Parts Diagram

Product Name - ESTATE Pro 9122 XWSY

Model Year - 2020-2021

Model Type - TH4NSE 122 Hydro

Art.N - 2T1535381/ST1P

Engine Model - GXV 690

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382785301/0 Available to backorder	Fixed Seat Support	£43.64 £36.37
2	MO325060049/0 Available to backorder	Seat Switch Cam	£2.26 £1.88
3	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
4	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
4	MO112523020/0 In stock	Washer From 29-3-2021	£1.55 £1.29
6	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
7	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
9	MO382318316/1 Available to backorder	Opc Spring And Lever Assy	£40.82 £34.02
10	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
11	MO112154330/0 In stock	Nut	£1.55 £1.29
12	MO325785147/2 Available to backorder	Seat Support	£40.82 £34.02
13	MO325318303/0 Available to backorder	Stop Lever	£4.78 £3.98
14	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
15	MO125510000/0 Available to backorder	Pin	£1.40 £1.17
16	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
17	MO322394505/0 Available to backorder	Knob	£2.40 £2.00
18	MO112793102/0 In stock	Screw	£1.55 £1.29
19	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
20	MO325580510/0 Available to backorder	Steering Plate Cover From S.N 20JA1RON000040	£6.20 £5.17
20	MO325580508/0 Available to backorder	Steering Plate Cover To S.N 20JA1RON000039	£5.96 £4.97
21	MO325961222/1 Available to backorder	Steering Wheel To S.N 20JA1RON000039	£295.63 £246.36
21	MO325961225/0 Available to backorder	Steering Wheel From S.N 20JA1RON000040	£232.28 £193.57
22	MO125722480/1 Available to backorder	Seat	£380.10 £316.75
23	MO387185100/1 Available to backorder	Arm Rest Kit	£218.21 £181.84
31	MO322110240/1 Available to backorder	Stiga Hub Cap Black	£1.82 £1.52
32	MO322110239/0 Available to backorder	Stiga Hub Cap [Black]	£1.82 £1.52
