ESTATE Pro 9122 XWSY - 2020-2021 - 2T1535381/ST1P - Stiga Ride On Mower Honda Engine Diagram

Description

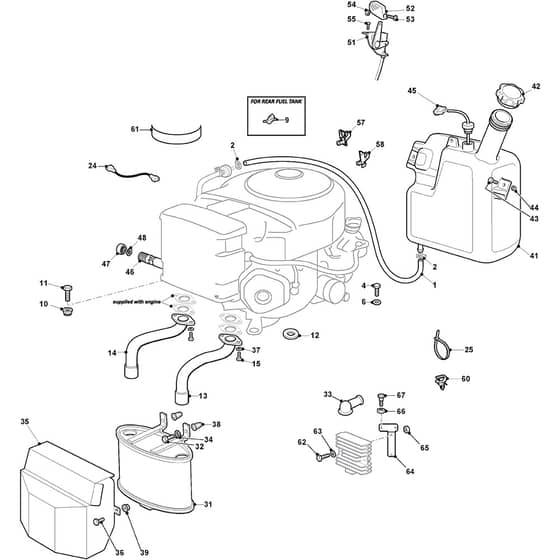

Stiga ESTATE Pro 9122 XWSY Parts Diagram

Product Name - ESTATE Pro 9122 XWSY

Model Year - 2020-2021

Model Type - TH4NSE 122 Hydro

Art.N - 2T1535381/ST1P

Engine Model - GXV 690

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118375062/0 Available to backorder	Fair Led From S.N 24GA3RON000473	£1.82 £1.52
2	MO118375051/1 Available to backorder	Fair Led To S.N 24GA3RON000472	£3.00 £2.50
4	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
6	MO112523020/0 In stock	Washer	£1.55 £1.29
9	MO118566119/0 Available to backorder	Shut Out Valve Only for Rear Tank From S.N 21GA3RON003919	£14.64 £12.20
10	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
11	MO125510028/3 Available to backorder	Pin	£5.06 £4.22
12	MO125160112/0 Available to backorder	Spacer Only for collecting Models	£4.15 £3.46
13	MO118738280/0 Available to backorder	Left Exhaust Connection Tube	£67.57 £56.31
15	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO125065017/0 Available to backorder	Cable	£9.43 £7.86
25	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
31	MO182750016/0 Available to backorder	Exhaust	£168.92 £140.77
32	MO112793301/0 In stock	Screw	£1.55 £1.29
33	MO118564861/2 Available to backorder	Protection	£6.76 £5.63
34	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
35	MO382598043/4 Available to backorder	Muffler Protection From S.N 21LA1RON002155	£83.06 £69.22
37	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
38	MO112280101/0 Available to backorder	Nut	£1.82 £1.52
41	MO325735134/0 Available to backorder	Fuel Tank [10 Litres] Long Neck	£87.28 £72.73
42	MO125795001/1 In stock	Cap	£7.96 £6.63
43	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
44	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
45	MO125290002/1 Available to backorder	Fuel Level Indicator	£57.23 £47.69
46	MO127598061/2 Available to backorder	Oil Discharge Extension	£24.13 £20.11
47	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
48	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
51	MO182000218/0 Available to backorder	Accelerator	£30.97 £25.81
52	MO325592000/1 Available to backorder	Knob	£2.40 £2.00
53	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
54	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
55	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
57	MO325785562/0 Available to backorder	Right Tube Support	£3.79 £3.16
58	MO325785563/0 Available to backorder	Left Tube Support	£3.79 £3.16
61	MO125730027/0 Available to backorder	Intake Separator	£8.59 £7.16
62	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
63	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
64	MO325547271/0 Available to backorder	Plate	£14.80 £12.33
65	MO112154510/0 In stock	Nut	£1.55 £1.29
66	MO112292102/0 In stock	Nut	£1.69 £1.41
67	MO112791011/0 Available to backorder	Screw Te M6X14 Uni 5739 Acc.8.8	£1.40 £1.17
