ESTATE Pro 9122 XWSY - 2018-2020 - 2T1530281/ST1 - Stiga Ride On Mower Grasscatcher Diagram

Description

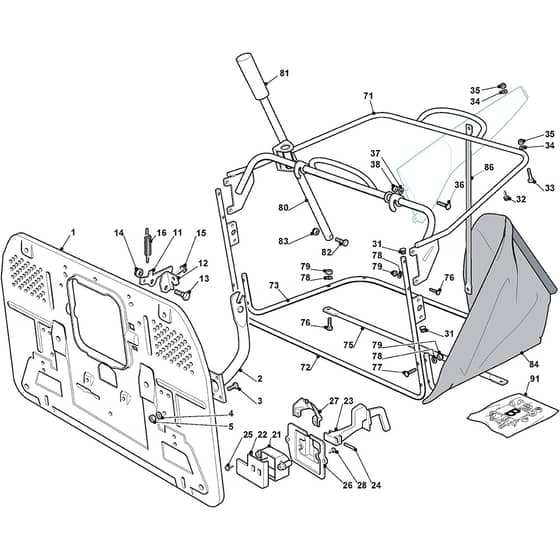

Stiga ESTATE Pro 9122 XWSY Parts Diagram

Product Name - ESTATE Pro 9122 XWSY

Model Year - 2018-2020

Model Type - TH4NS 122 Hydro

Art.N - 2T1530281/ST1

Engine Model - Intek 8240 V-Twin

	Part No.	Details
1	MO382547053/1 Available to backorder	Rear Plate From 01-9-2016	£849.86 £708.22
2	MO182774225/1 Available to backorder	Clamp	£33.79 £28.16
3	MO112793102/0 In stock	Screw	£1.55 £1.29
4	MO112523060/0 In stock	Washer	£1.55 £1.29
5	MO112293201/0 In stock	Nut	£1.70 £1.42
11	MO325774417/0 Available to backorder	Clamp	£7.02 £5.85
12	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
13	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
91	MO382180116/0 Available to backorder	Grasscatcher Screw Outfit	£85.87 £71.56
