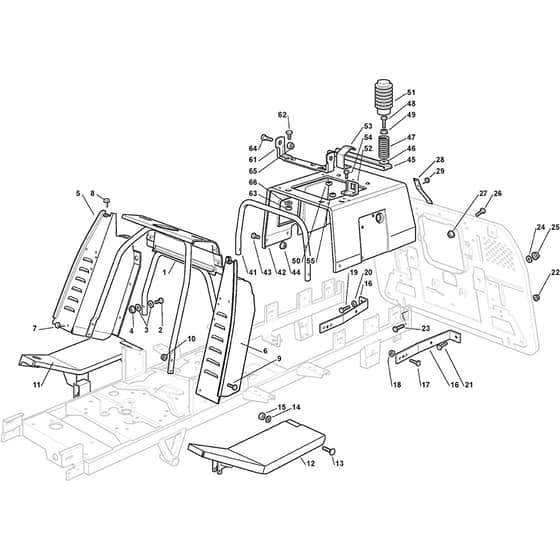

Stiga ESTATE Pro 9122 XWSY Parts Diagram

Product Name - ESTATE Pro 9122 XWSY

Model Year - 2018-2020

Model Type - TH4NS 122 Hydro

Art.N - 2T1530281/ST1

Engine Model - Intek 8240 V-Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382785247/2 Available to backorder	Stiffening From 01-9-2016	£246.35 £205.29
2	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
5	MO382785022/10 Available to backorder	Right Dashboard Support To S.N 419952	£40.63 £33.86
6	MO382785021/9 Available to backorder	Left Dashboard Support From S.N 419953	£38.20 £31.83
9	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
11	MO325500046/2 Available to backorder	Right Footboard From S.N 424413	£45.04 £37.53
12	MO325500047/1 Available to backorder	Left Footboard From S.N 409967	£87.60 £73.00
13	MO112728689/0 In stock	Screw	£1.40 £1.17
14	MO112523040/0 In stock	Washer	£1.49 £1.24
15	MO112523030/0 Available to backorder	Washer	£1.55 £1.29
16	MO325774273/2 Available to backorder	Stiffening From 01-9-2013	£8.87 £7.39
17	MO112793102/0 In stock	Screw	£1.55 £1.29
19	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
23	MO112794300/0 Available to backorder	Screw	£1.82 £1.52
24	MO112521360/0 In stock	Washer	£1.55 £1.29
25	MO112156602/0 In stock	Nut	£1.40 £1.17
28	MO125430238/1 Available to backorder	Spring From 01-9-2013	£4.08 £3.40
29	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
41	MO325869085/0 Available to backorder	Stiffening	£20.14 £16.78
42	MO325785133/5 Available to backorder	Seat Support From 01-9-2012	£68.99 £57.49
43	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
44	MO112292102/0 In stock	Nut	£1.69 £1.41
45	MO325650067/1 Available to backorder	Pulley Stiffening From S.N 382500	£5.92 £4.93
47	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
48	MO125943001/1 Available to backorder	Screw From 01-9-2012	£1.97 £1.64
48	MO125943001/0 Available to backorder	Screw To 31-8-2012	£1.55 £1.29
50	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
51	MO325737002/0 Available to backorder	Hood	£17.08 £14.23
52	MO325755025/2 Available to backorder	Bracket To S.N 428544	£5.60 £4.67
52	MO325755025/3 Available to backorder	Bracket From S.N 428545	£5.76 £4.80
53	MO325430255/0 Available to backorder	Spring	£3.94 £3.28
54	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
55	MO112437502/0 Available to backorder	Plate To 31-8-2016	£1.55 £1.29
55	MO112437502/1 Available to backorder	Plate From 01-9-2016	£1.55 £1.29
61	MO382774305/0 Available to backorder	Seat Clamp Support From 01-9-2017	£11.24 £9.37
62	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
63	MO112155000/0 In stock	Nut From 01-9-2012	£1.55 £1.29
63	MO112293201/0 In stock	Nut To 31-8-2012	£1.69 £1.41
64	MO122524970/3 Available to backorder	Pin From S.N 23631	£1.69 £1.41
64	MO122524970/2 Available to backorder	Fulcrum Pin From S.N 23630	£1.90 £1.58
65	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
66	MO112523070/0 Available to backorder	Washer M8 8.5 X 32 X 2.5	£1.55 £1.29
