ESTATE 9122 W - 2023 - 2T1310481/ST2P - Stiga Ride On Mower Grasscatcher Diagram

Description

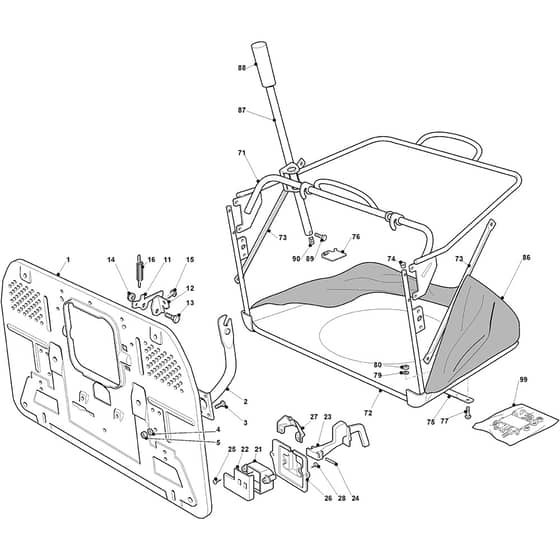

Stiga ESTATE 9122 W Parts Diagram

Product Name - ESTATE 9122 W

Model Year - 2023

Model Type - TNSE 122 Hydro

Art.N - 2T1310481/ST2P

Engine Model - ST 650 Twin

	Part No.	Details
1	MO382547053/1 Available to backorder	Rear Plate	£849.86 £708.22
2	MO182774225/1 Available to backorder	Clamp	£33.79 £28.16
3	MO112793102/0 In stock	Screw	£1.55 £1.29
4	MO112523060/0 In stock	Washer	£1.55 £1.29
5	MO112293201/0 In stock	Nut	£1.70 £1.42
11	MO325774315/1 Available to backorder	Bracket	£3.92 £3.27
12	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
13	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
14	MO112292102/0 In stock	Nut	£1.70 £1.42
15	MO112735661/0 Available to backorder	Screw	£1.63 £1.36
16	MO125430210/1 Available to backorder	Brake Spring	£2.82 £2.35
21	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.90 £3.25
99	MO382180110/0 Available to backorder	Outfit. Screws	£89.39 £74.49
