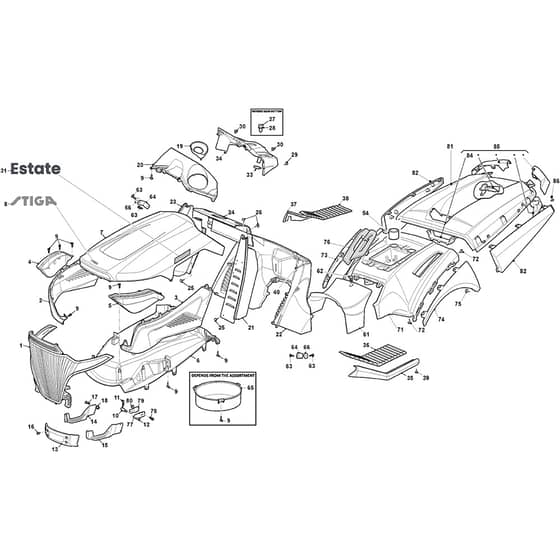

ESTATE 9122 W - 2022-2024 - 2T1210381/ST2 - Stiga Ride On Mower Body Diagram

Name: ESTATE 9122 W - 2022-2024 - 2T1210381/ST2 - Stiga Ride On Mower Body Diagram
SKU: estate_9122_w_2t1210381_st2_body-group
Price: 0.87 GBP
Availability: InStock

Part No. estate_9122_w_2t1210381_st2_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 9122 W - 2022-2024 - 2T1210381/ST2 - Stiga Ride On Mower Body Diagram

Description

Stiga ESTATE 9122 W Parts Diagram

Product Name - ESTATE 9122 W

Model Year - 2022-2024

Model Type - TNSE 122 Hydro

Art.N - 2T1210381/ST2

Engine Model - GXV 630

	Part No.	Details
1	MO325076981/0 Available to backorder	Frontal Bonnet	£81.66 £68.05
2	MO325207270/0 Available to backorder	Right Bonnet Side	£63.34 £52.78
3	MO325207271/0 Available to backorder	Left Bonnet Side	£57.58 £47.98
4	MO382185508/0 Available to backorder	Right Led Light Assy	£168.91 £140.76
5	MO382185509/0 Available to backorder	Left Led Light Assy	£168.91 £140.76
6	MO325108111/0 Available to backorder	Air Conveyor	£70.10 £58.42
7	MO325076978/0 Available to backorder	Upper Engine Hood. Yellow	£118.26 £98.55
8	MO114367495/1 Available to backorder	Stiga Logo Label	£11.60 £9.67
9	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
10	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
11	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
12	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
13	MO382263503/0 Available to backorder	Bumper	£33.79 £28.16
14	MO382785251/0 Available to backorder	Right Support	£33.79 £28.16
15	MO382785253/0 Available to backorder	Left Support	£33.79 £28.16
16	MO127943051/0 Available to backorder	Screw	£1.84 £1.53
17	MO127943054/0 Available to backorder	Screw	£1.84 £1.53
18	MO112155000/0 In stock	Nut	£1.55 £1.29
19	MO325207272/0 Available to backorder	Cover Tank	£7.25 £6.04
20	MO325785542/0 Available to backorder	Extension Dashboard W.Hole	£29.57 £24.64
21	MO382785021/9 Available to backorder	Left Dashboard Support	£43.02 £35.85
22	MO325785449/0 Available to backorder	Black Dashboard Support	£75.31 £62.76
23	MO382785022/10 Available to backorder	Right Dashboard Support	£43.02 £35.85
24	MO382785137/1 Available to backorder	Central Dashboard Support	£13.42 £11.18
25	MO112735403/0 In stock	Screw	£1.55 £1.29
26	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
27	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
28	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
29	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
30	MO325120284/0 Available to backorder	Cap	£2.11 £1.76
31	MO114372972/0 Available to backorder	Denomination Label "Estate" Only for STIGA Brand	£9.17 £7.64
33	MO125260000/0 Available to backorder	Grommet	£2.94 £2.45
34	MO325120282/0 Available to backorder	Dashboard. Grey (Cruise Control)	£47.87 £39.89
35	MO325599018/0 Available to backorder	Left. Footboard Profile	£15.84 £13.20
36	MO325110279/0 Available to backorder	Left Footboard Cover	£30.98 £25.82
37	MO325599017/0 Available to backorder	Right. Footboard Profile	£18.30 £15.25
38	MO325110278/1 Available to backorder	Right Footboard Cover	£30.98 £25.82
