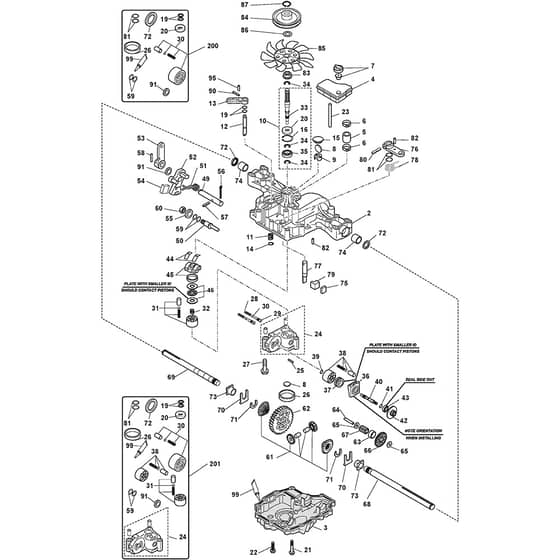

Stiga ESTATE 9102 W Parts Diagram

Product Name - ESTATE 9102 W

Model Year - 2024

Model Type - TNSE 102 Hydro

Art.N - 2T0940681/ST1

Engine Model - FS600V

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F)	£866.59 £722.16
4	TT1A646024460 Available to backorder	Reservoir Tank K46F	£42.48 £35.40
5	MO1139-1363-01 Available to backorder	Tube K46F	£8.90 £7.42
6	MO1139-1336-01 Available to backorder	Cobra Clip K46F	£6.76 £5.63
7	MO1139-1595-01 Available to backorder	Vent Valve Assy K46F	£17.40 £14.50
8	MO1139-1150-01 Available to backorder	Magnet K46F	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder K46F	£5.62 £4.68
10	MO1139-1606-01 Available to backorder	Pump Shaft Kit K46F	£80.63 £67.19
11	MO1139-1347-01 Available to backorder	Spring K46F	£4.52 £3.77
13	MO1139-1189-01 Available to backorder	By-Pass Lever K46F	£9.19 £7.66
14	MO1139-1161-01 Available to backorder	Ring K46F	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug K46F	£9.61 £8.01
16	MO1139-1104-01 Available to backorder	Snap Ring K46F	£4.52 £3.77
19	MO1139-1117-01 Available to backorder	O-Ring K46F	£4.52 £3.77
20	MO1139-1119-01 Available to backorder	Seal 15357 K46F	£6.10 £5.08
21	MO1139-1295-01 Available to backorder	Screw K46F	£4.94 £4.12
24	MO1139-1592-01 Available to backorder	Center Case Kit K46F	£354.90 £295.75
24	MO1139-1593-01 Available to backorder	Center Case K46F	£1,185.12 £987.60
25	MO1139-1158-01 Available to backorder	Pin K46F	£4.52 £3.77
26	MO1139-1405-01 Available to backorder	Filter K46F	£22.76 £18.97
28	MO1139-1242-01 Available to backorder	Ids Valve K46F	£14.00 £11.67
29	MO1139-1243-01 Available to backorder	Spring K46F	£4.36 £3.63
30	TT168T2084770 Available to backorder	Filter K46F	£2.46 £2.05
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit K46F	£124.45 £103.71
32	MO1139-1245-01 Available to backorder	Pump Spring K46F	£4.81 £4.01
33	MO1139-1246-01 Available to backorder	Pump Shaft K46F	£62.23 £51.86
34	MO1139-1750-01 Available to backorder	Ring K46F	£4.52 £3.77
35	MO1139-1110-01 Available to backorder	Ball Bearing K46F	£17.98 £14.98
36	MO1139-1157-01 Available to backorder	Housing K46F	£18.31 £15.26
37	MO1139-1501-01 Available to backorder	Bearing K46F	£48.10 £40.08
38	MO1139-1139-01 Available to backorder	Cylinder Block Assy K46F	£229.15 £190.96
39	MO1139-1160-01 Available to backorder	Washer K46F	£4.52 £3.77
40	MO1139-1353-01 Available to backorder	Motor Shaft K46F	£39.61 £33.01
41	MO1139-1021-01 Available to backorder	Snap Ring K46F	£4.52 £3.77
43	MO1139-1453-01 Available to backorder	Bearing K46F	£18.77 £15.64
45	MO1139-1475-01 Available to backorder	Swash Plate K46F	£32.06 £26.72
51	MO1139-1407-01 Available to backorder	Torsion Spring K46F	£12.16 £10.13
52	MO1139-1409-01 Available to backorder	Lever K46F	£56.11 £46.76
55	MO1139-1102-01 Available to backorder	Washer K46F	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin K46F	£4.52 £3.77
57	MO1139-1329-01 Available to backorder	Pin K46F	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin K46F	£4.52 £3.77
59	MO1139-1115-01 Available to backorder	O-Ring K46F	£4.52 £3.77
60	MO1139-1127-01 Available to backorder	Nut K46F	£4.52 £3.77
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit K46F	£73.56 £61.30
62	MO1139-1258-01 Available to backorder	Final Gear K46F	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar K46F	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft K46F	£14.70 £12.25
