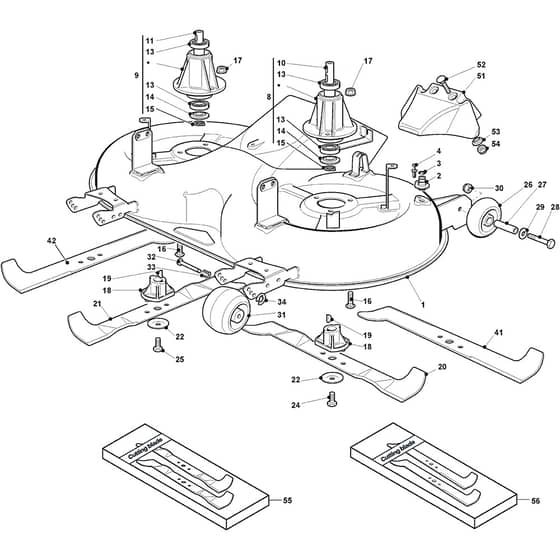

ESTATE 9102 W - 2024 - 2T0940681/ST1 - Stiga Ride On Mower Cutting Plate Diagram

Description

Stiga ESTATE 9102 W Parts Diagram

Product Name - ESTATE 9102 W

Model Year - 2024

Model Type - TNSE 102 Hydro

Art.N - 2T0940681/ST1

Engine Model - FS600V

	Part No.	Details
1	MO382564131/1 Available to backorder	Cutting Plate Black Black From S.N 23AA1RON001831	£662.83 £552.36
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.55 £1.29
8	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.34 £84.45
9	MO382207201/3LC In stock	Secondary Blade Shaft Ass.Y	£91.50 £76.25
10	MO125020832/0 Available to backorder	Main Blade Shaft	£39.76 £33.13
11	MO125020833/0 Available to backorder	Secondary Blade Shaft	£31.46 £26.22
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover Disc	£1.55 £1.29
15	MO112609260/0 In stock	Seeger	£1.84 £1.53
16	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
18	MO125463200/0 In stock	Blade Holder	£9.07 £7.56
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004347/0 In stock	Left Mulching Blade. Winged	£27.89 £23.24
21	MO182004348/0 In stock	Right Mulching Blade. Winged	£27.89 £23.24
22	MO125160503/0 In stock	Blade Hub Elastic Disc Lawntr.	£3.52 £2.93
56	MO1134-9228-01 In stock	Winged Blade 102cm.40" [Stiga Pack]	£74.08 £61.73
