ESTATE 9102 W - 2022-2024 - 2T0980381/ST2P - Stiga Ride On Mower Engine Diagram

Description

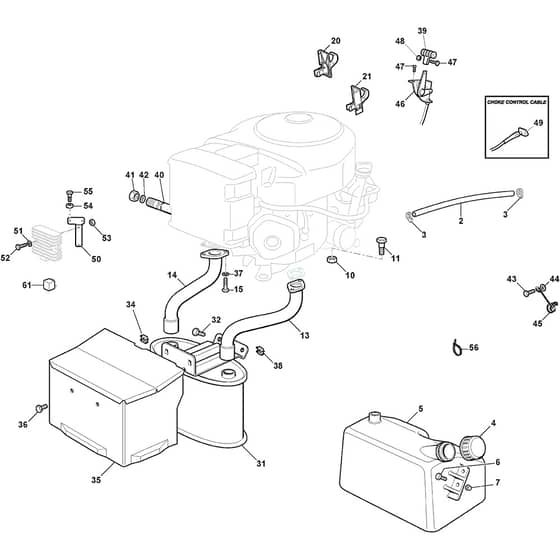

Stiga ESTATE 9102 W Parts Diagram

Product Name - ESTATE 9102 W

Model Year - 2022-2024

Model Type - TNSE 102 Hydro

Art.N - 2T0980381/ST2P

Engine Model - GXV 630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869033/1 Available to backorder	Fuel Tube	£11.69 £9.74
3	MO118375051/1 Available to backorder	Fair Led To S.N 24GA3RON000472	£3.00 £2.50
3	MO118375062/0 Available to backorder	Fair Led From S.N 24GA3RON000473	£1.82 £1.52
4	MO137793051/0 Available to backorder	Fuel Tank Cap From S.N 22EA1RON000041	£13.19 £10.99
4	MO125795001/1 In stock	Cap To S.N 22EA1RON000040	£7.96 £6.63
5	MO325735131/0 Available to backorder	Fuel Tank [8 Litres]	£64.33 £53.61
6	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
7	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
10	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
11	MO125510028/3 Available to backorder	Pin	£5.06 £4.22
13	MO118738244/0 Available to backorder	Left Exhaust Connection Tube	£50.68 £42.23
14	MO118738243/0 Available to backorder	Right Exhaust Connection Tube	£50.68 £42.23
15	MO112793102/0 In stock	Screw	£1.55 £1.29
20	MO325785562/0 Available to backorder	Right Tube Support	£3.79 £3.16
21	MO325785563/0 Available to backorder	Left Tube Support	£3.79 £3.16
31	MO182750014/0 Available to backorder	Muffler	£160.48 £133.73
32	MO9959-0820-16 In stock	Screw	£1.55 £1.29
34	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
35	MO382598073/0 Available to backorder	Muffler Protection	£90.10 £75.08
36	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
37	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
39	MO325592000/1 Available to backorder	Knob	£2.40 £2.00
40	MO127598061/2 Available to backorder	Oil Discharge Extension	£24.13 £20.11
41	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
42	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
43	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
44	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
45	MO127430561/0 Available to backorder	Spring	£2.40 £2.00
46	MO182000218/0 Available to backorder	Accelerator	£30.97 £25.81
47	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
48	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
49	MO125090001/2 In stock	Choke Control	£19.36 £16.13
50	MO325547271/0 Available to backorder	Plate	£14.80 £12.33
51	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
52	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
53	MO112154510/0 In stock	Nut	£1.55 £1.29
54	MO112292102/0 In stock	Nut	£1.69 £1.41
55	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
56	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
61	MO133567000/0 Available to backorder	Relay	£13.58 £11.32
