Estate 798e - 2022-2025 - 2T2800481/ST2 - Stiga Ride On Mower Grasscatcher Diagram

Name: Estate 798e - 2022-2025 - 2T2800481/ST2 - Stiga Ride On Mower Grasscatcher Diagram
SKU: estate_798e_2t2800481_st2_grasscatcher-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estate 798e - 2022-2025 - 2T2800481/ST2 - Stiga Ride On Mower Grasscatcher Diagram

Description

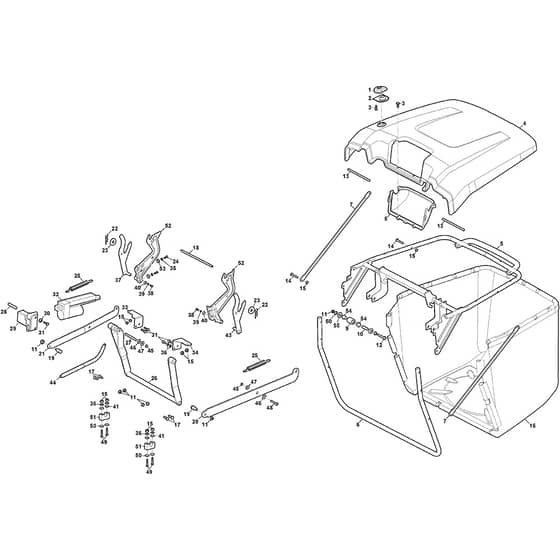

Stiga Estate 798e Parts Diagram

Product Name - Estate 798e

Model Year - 2022-2025

Model Type - MPST 98 Li 48 V3

Art.N - 2T2800481/ST2

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325120297/0 Available to backorder	Cap For Rear Cg Cover	£2.95 £2.46
2	MO325785610/0 Available to backorder	Internal Bag Support	£3.52 £2.93
3	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
4	MO325110439/2 Available to backorder	Yellow Grass-Catcher Cover From S.N 22GA3RON000468	£129.72 £108.10
4	MO325110439/1 Available to backorder	Yellow Grass-Catcher Cover To S.N 22GA3RON000467	£116.81 £97.34
5	MO382800197/0 Available to backorder	Upper Grasscatcher Frame Assy	£117.54 £97.95
6	MO382800141/0 Available to backorder	Front Frame	£40.82 £34.02
7	MO325650149/0 Available to backorder	Stiffening	£8.45 £7.04
8	MO325207195/1 Available to backorder	Handle Cover	£10.79 £8.99
9	MO125510186/0 Available to backorder	Grasscatcher Camm Pin	£6.05 £5.04
10	MO125040653/0 Available to backorder	Left Bush Connectinglever	£3.38 £2.82
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
13	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
14	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO182105947/0 Available to backorder	Grasscatcher Black without Logo	£153.44 £127.87
17	MO112793301/0 In stock	Screw	£1.55 £1.29
18	MO125510201/0 Available to backorder	Pin	£13.37 £11.14
19	MO125510191/0 Available to backorder	Pin X Spring Fix	£3.67 £3.06
20	MO325774783/0 Available to backorder	Left Bracket	£23.23 £19.36
21	MO325774803/0 Available to backorder	Right Bracket	£25.90 £21.58
22	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
23	MO325670008/1 In stock	Washer	£1.55 £1.29
24	MO112794300/0 Available to backorder	Screw	£1.82 £1.52
25	MO125430218/1 Available to backorder	Spring	£5.76 £4.80
26	MO382318359/0 Available to backorder	Rear Command Axle Assy	£83.06 £69.22
27	MO125510203/0 Available to backorder	Pin	£5.70 £4.75
28	MO125510195/0 Available to backorder	Pin	£9.16 £7.63
29	MO382774327/0 Available to backorder	Front Bracket Assy	£18.65 £15.54
30	MO112582100/0 Available to backorder	Grower	£1.55 £1.29
31	MO112791213/1 In stock	Screw	£1.55 £1.29
32	MO118001005/0 Available to backorder	Deck Lifting Actuator	£218.21 £181.84
33	MO325774799/0 Available to backorder	Right Bracket Spring	£4.66 £3.88
34	MO325774801/0 Available to backorder	Left Bracket Spring	£4.66 £3.88
35	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
36	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
37	MO382318347/0 Available to backorder	Cam	£49.69 £41.41
38	MO112793102/0 In stock	Screw	£1.55 £1.29
39	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
40	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
41	MO125160125/0 Available to backorder	Spacer	£2.95 £2.46
43	MO382318349/0 Available to backorder	Cam	£49.69 £41.41
44	MO325650209/0 Available to backorder	Bracket	£6.25 £5.21
45	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
46	MO112523080/0 In stock	Washer	£1.55 £1.29
47	MO322672150/0 Available to backorder	Antifriction Washer	£1.82 £1.52
49	MO112792425/0 Available to backorder	Screw	£1.69 £1.41
50	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
51	MO325785185/0 Available to backorder	Support	£3.67 £3.06
52	MO382785316/0 Available to backorder	Support Assy	£106.51 £88.76
53	MO112521360/0 In stock	Washer	£1.55 £1.29
54	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
55	MO112053500/0 Available to backorder	Flange Bearing Igus Gfm-1214-15	£5.48 £4.57
