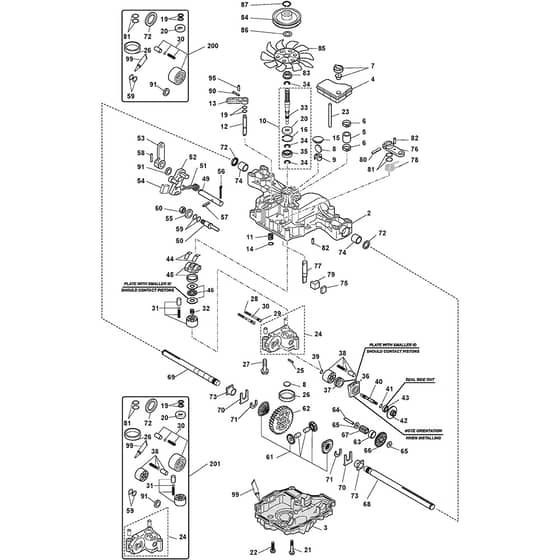

ESTATE 792 W SE - 2024 - 2T0782481/ST1 - Stiga Ride On Mower Kanzaki Transaxle K46F Diagram

Description

Stiga ESTATE 792 W SE Parts Diagram

Product Name - ESTATE 792 W SE

Model Year - 2024

Model Type - TCNS 92 Hydro

Art.N - 2T0782481/ST1

Engine Model -

	Part No.	Details
1	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F)	£866.59 £722.16
4	TT1A646024460 Available to backorder	Reservoir Tank K46F	£40.08 £33.40
5	MO1139-1363-01 Available to backorder	Tube K46F	£8.90 £7.42
6	MO1139-1336-01 Available to backorder	Cobra Clip K46F	£6.77 £5.64
7	MO1139-1595-01 Available to backorder	Vent Valve Assy K46F	£17.41 £14.51
8	MO1139-1150-01 Available to backorder	Magnet K46F	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder K46F	£5.60 £4.67
10	MO1139-1606-01 Available to backorder	Pump Shaft Kit K46F	£80.62 £67.18
11	MO1139-1347-01 Available to backorder	Spring K46F	£4.51 £3.76
13	MO1139-1189-01 Available to backorder	By-Pass Lever K46F	£9.18 £7.65
14	MO1139-1161-01 Available to backorder	Ring K46F	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug K46F	£9.62 £8.02
16	MO1139-1104-01 Available to backorder	Snap Ring K46F	£4.51 £3.76
19	MO1139-1117-01 Available to backorder	O-Ring K46F	£4.52 £3.77
20	MO1139-1119-01 Available to backorder	Seal 15357 K46F	£6.08 £5.07
21	MO1139-1295-01 Available to backorder	Screw K46F	£4.96 £4.13
24	MO1139-1592-01 Available to backorder	Center Case Kit K46F	£354.90 £295.75
25	MO1139-1158-01 Available to backorder	Pin K46F	£4.51 £3.76
26	MO1139-1405-01 Available to backorder	Filter K46F	£23.52 £19.60
28	MO1139-1242-01 Available to backorder	Ids Valve K46F	£14.00 £11.67
30	TT168T2084770 Available to backorder	Filter K46F	£2.69 £2.24
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit K46F	£1,250.00 £1,041.67
32	MO1139-1245-01 Available to backorder	Pump Spring K46F	£4.82 £4.02
33	MO1139-1246-01 Available to backorder	Pump Shaft K46F	£62.22 £51.85
34	MO1139-1750-01 Available to backorder	Ring K46F	£4.51 £3.76
35	MO1139-1110-01 Available to backorder	Ball Bearing K46F	£17.98 £14.98
36	MO1139-1157-01 Available to backorder	Housing K46F	£18.31 £15.26
37	MO1139-1501-01 Available to backorder	Bearing K46F	£48.08 £40.07
38	MO1139-1139-01 Available to backorder	Cylinder Block Assy K46F	£1,185.12 £987.60
39	MO1139-1160-01 Available to backorder	Washer K46F	£4.51 £3.76
40	MO1139-1353-01 Available to backorder	Motor Shaft K46F	£39.62 £33.02
41	MO1139-1021-01 Available to backorder	Snap Ring K46F	£4.51 £3.76
43	MO1139-1453-01 Available to backorder	Bearing K46F	£18.77 £15.64
45	MO1139-1475-01 Available to backorder	Swash Plate K46F	£32.08 £26.73
52	MO1139-1409-01 Available to backorder	Lever K46F	£56.11 £46.76
55	MO1139-1102-01 Available to backorder	Washer K46F	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin K46F	£4.51 £3.76
57	MO1139-1329-01 Available to backorder	Pin K46F	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin K46F	£4.51 £3.76
59	MO1139-1115-01 Available to backorder	O-Ring K46F	£4.51 £3.76
60	MO1139-1127-01 Available to backorder	Nut K46F	£4.51 £3.76
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit K46F	£73.57 £61.31
62	MO1139-1258-01 Available to backorder	Final Gear K46F	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar K46F	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft K46F	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer K46F	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear K46F	£25.18 £20.98
69	TT1A646089460 Available to backorder	Axle Shaft-Rh K46F	£81.12 £67.60
70	MO1139-1078-01 Available to backorder	Thrust Washer K46F	£12.05 £10.04
71	MO1139-1163-01 Available to backorder	Ring K46F	£4.51 £3.76
72	MO1139-1080-01 In stock	Seal 19328 K46F	£13.28 £11.07
73	MO1139-1164-01 Available to backorder	Bushing K46F	£6.61 £5.51
74	MO1139-1414-01 Available to backorder	Bushing K46F	£6.30 £5.25
75	MO1139-1260-01 Available to backorder	Brake Shoe K46F	£4.51 £3.76
76	MO1139-1261-01 Available to backorder	Brake Arm K46F	£10.03 £8.36
77	MO1139-1320-01 Available to backorder	Brake Shaft K46F	£47.81 £39.84
78	MO1139-1411-01 Available to backorder	Return Spring K46F	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator K46F	£5.60 £4.67
80	MO1139-1282-01 Available to backorder	Pin K46F	£5.04 £4.20
81	MO1139-1114-01 Available to backorder	O-Ring K46F	£4.82 £4.02
83	MO1139-1248-01 Available to backorder	Spline Collar K46F	£8.53 £7.11
84	MO1134-5821-01 Available to backorder	Pulley K46F	£38.00 £31.67
85	MO1134-4190-01 In stock	Fan K46F	£21.12 £17.60
86	MO1139-1266-01 Available to backorder	Washer K46F	£4.82 £4.02
87	MO1139-1149-01 Available to backorder	Snap Ring K46F	£4.98 £4.15
91	TT1A646024440 Available to backorder	Seal Ring K46F	£7.56 £6.30
95	MO1139-1279-01 Available to backorder	Pin K46F	£4.51 £3.76
99	MO1139-1443-01 Available to backorder	Sealant (Tube) K46F	£38.21 £31.84
200	MO1139-1403-01 Available to backorder	Seal Kit Märkta S.marked S _ K46F	£180.96 £150.80
201	MO1139-1593-01 Available to backorder	Repair Kit	£1,185.12 £987.60
