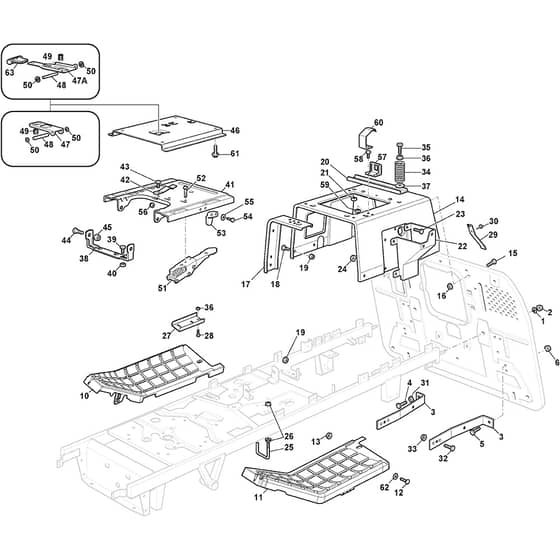

ESTATE 792 W SE - 2024 - 2T0782481/ST1 - Stiga Ride On Mower Frame Diagram

Description

Stiga ESTATE 792 W SE Parts Diagram

Product Name - ESTATE 792 W SE

Model Year - 2024

Model Type - TCNS 92 Hydro

Art.N - 2T0782481/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
2	MO9739-1031-22 In stock	Nut	£1.97 £1.64
3	MO325774273/2 Available to backorder	Stiffening	£8.87 £7.39
4	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
5	MO112793102/0 In stock	Screw	£1.55 £1.29
6	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
10	MO325500052/0 Available to backorder	Right Footboard Support	£116.15 £96.79
11	MO325500053/0 Available to backorder	Left Footboard Support	£116.15 £96.79
12	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO325785133/5 Available to backorder	Seat Support	£68.99 £57.49
15	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
17	MO325650065/1 Available to backorder	Pulley Stiffening	£9.28 £7.73
20	MO325650067/1 Available to backorder	Pulley Stiffening	£5.92 £4.93
21	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
22	MO325785137/1 Available to backorder	Support	£35.20 £29.33
23	MO112791213/1 In stock	Screw	£1.55 £1.29
25	MO125580019/1 Available to backorder	Belt Guide (Hydro)	£3.94 £3.28
26	MO112292102/0 In stock	Nut	£1.69 £1.41
27	MO325774805/0 Available to backorder	Fixing Bracket	£71.00 £59.17
28	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
29	MO125430238/1 Available to backorder	Spring	£4.08 £3.40
32	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
34	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
35	MO125943001/1 Available to backorder	Screw	£1.97 £1.64
37	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
38	MO382774305/0 Available to backorder	Seat Clamp Support	£11.24 £9.37
39	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
40	MO112293201/0 In stock	Nut	£1.69 £1.41
41	MO382785301/0 Available to backorder	Fixed Seat Support	£43.64 £36.37
42	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
43	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
44	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
45	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
46	MO325785147/2 Available to backorder	Seat Support	£40.82 £34.02
47	MO325318109/1 Available to backorder	Stop Lever	£4.50 £3.75
47	MO325318303/0 Available to backorder	Stop Lever 47A	£4.78 £3.98
48	MO125510000/0 Available to backorder	Pin	£1.40 £1.17
49	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
50	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
51	MO382318316/1 Available to backorder	Opc Spring And Lever Assy	£40.82 £34.02
52	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
53	MO325060049/0 Available to backorder	Seat Switch Cam	£2.26 £1.88
54	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
55	MO112523020/0 In stock	Washer	£1.55 £1.29
56	MO112154330/0 In stock	Nut	£1.55 £1.29
57	MO325755025/3 Available to backorder	Bracket	£5.76 £4.80
58	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
59	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
60	MO325430255/0 Available to backorder	Spring	£3.94 £3.28
61	MO9959-0820-16 In stock	Screw	£1.55 £1.29
62	MO122671653/0 Available to backorder	Washer	£1.55 £1.29
63	MO322394505/0 Available to backorder	Wheel Lever Knob [Black]	£2.40 £2.00
