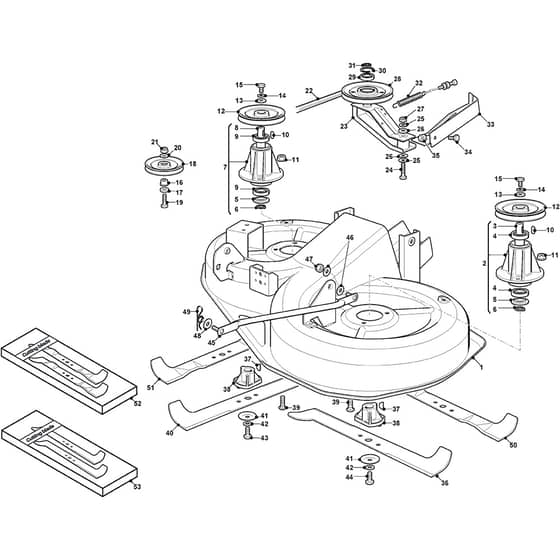

ESTATE 792 W - 2022-2024 - 2T0785481/ST1P - Stiga Ride On Mower Cutting Plate Diagram

Name: ESTATE 792 W - 2022-2024 - 2T0785481/ST1P - Stiga Ride On Mower Cutting Plate Diagram
SKU: estate_792_w_2t0785481_st1p_cutting_plate-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ESTATE 792 W - 2022-2024 - 2T0785481/ST1P - Stiga Ride On Mower Cutting Plate Diagram

Description

Stiga ESTATE 792 W Parts Diagram

Product Name - ESTATE 792 W

Model Year - 2022-2024

Model Type - TCNS 92 Hydro

Art.N - 2T0785481/ST1P

Engine Model - ST 600 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564165/0 Available to backorder	Cutting Plate Assy To S.N 23BA1RON000125	£547.43 £456.19
1	MO382564165/1 Available to backorder	Cutting Plate Assy Black From S.N 23BA1RON000126	£586.16 £488.47
2	MO382207202/1LC Available to backorder	Main Blade Shaft Ass.Y	£90.80 £75.67
3	MO125020834/0 Available to backorder	Main Blade Shaft	£30.40 £25.33
5	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
6	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
7	MO382207203/1LC Available to backorder	Secondary Blade Shaft Ass.Y	£90.80 £75.67
8	MO125020835/0 Available to backorder	Secondary Blade Shaft	£30.40 £25.33
9	MO119216047/0 In stock	Bearing	£15.78 £13.15
10	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
11	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
12	MO125601585/1 Available to backorder	Pulley	£43.64 £36.37
14	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
15	MO112793102/0 In stock	Screw	£1.55 £1.29
16	MO125160079/0 Available to backorder	Spacer	£4.08 £3.40
17	MO125670007/0 In stock	Washer	£1.97 £1.64
18	MO325601599/0 In stock	Pulley	£19.14 £15.95
19	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
20	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
22	MO135065700/0 In stock	Belt	£109.08 £90.90
23	MO382318141/2 In stock	Lever	£36.59 £30.49
24	MO112691700/0 In stock	Screw	£1.82 £1.52
25	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
26	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
27	MO112155000/0 In stock	Nut	£1.55 £1.29
28	MO125601564/1 Available to backorder	Pulley	£45.04 £37.53
29	MO119216048/0 In stock	Bearing	£18.31 £15.26
30	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
31	MO112609200/0 Available to backorder	Seeger	£1.55 £1.29
32	MO382004618/0 In stock	Wire	£22.81 £19.01
33	MO382774215/3 Available to backorder	Clamp	£30.97 £25.81
34	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
35	MO112293201/0 In stock	Nut	£1.69 £1.41
36	MO182004344/1 In stock	Left Blade. Winged	£23.29 £19.41
37	MO112139100/0 In stock	Key	£1.55 £1.29
38	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
39	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
40	MO182004345/1 In stock	Right Blade. Winged	£23.29 £19.41
41	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
42	MO112523080/0 In stock	Washer	£1.55 £1.29
43	MO112735695/1 In stock	Screw	£3.79 £3.16
44	MO112735694/0 In stock	Screw	£1.97 £1.64
45	MO382000474/1 Available to backorder	Equalizer Rod Deck	£32.38 £26.98
47	MO112156602/0 In stock	Nut	£1.40 £1.17
48	MO325670008/1 In stock	Washer	£1.55 £1.29
49	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
50	MO182004353/0 In stock	Left Mulching Blade. Winged	£23.71 £19.76
51	MO182004354/0 In stock	Right Mulching Blade. Winged	£23.71 £19.76
52	MO1134-9222-01 Available to backorder	Mulching Winged Blade. Right And Left Stiga Packed into 182004353.0 + 182004354.0	£60.60 £50.50
53	MO1134-9224-01 Available to backorder	Winged Blade 92cm.36" [Stiga Pack]	£59.24 £49.37
