ESTATE 792 SE - 2024 - 2T0780481/ST2 - Stiga Ride On Mower Transmission Diagram

Name: ESTATE 792 SE - 2024 - 2T0780481/ST2 - Stiga Ride On Mower Transmission Diagram
SKU: estate_792_se_2t0780481_st2_transmission-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

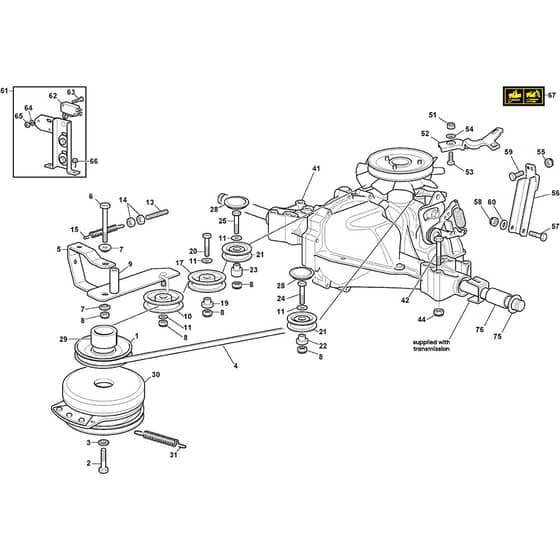

ESTATE 792 SE - 2024 - 2T0780481/ST2 - Stiga Ride On Mower Transmission Diagram

Description

Stiga ESTATE 792 SE Parts Diagram

Product Name - ESTATE 792 SE

Model Year - 2024

Model Type - TCNS 92 Hydro

Art.N - 2T0780481/ST2

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601610/0 Available to backorder	Pulley	£21.44 £17.87
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO135062019/0 In stock	Belt	£41.75 £34.79
5	MO382318165/2 Available to backorder	Lever	£27.74 £23.12
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 In stock	Bushing	£1.55 £1.29
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.68 £21.40
11	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO325601599/0 In stock	Pulley	£19.14 £15.95
19	MO125160056/0 Available to backorder	Spacer	£4.66 £3.88
20	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
21	MO325601570/1 Available to backorder	Pulley	£24.36 £20.30
22	MO125160030/2 Available to backorder	Left Spacer	£6.47 £5.39
23	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
25	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
28	MO125109521/1 Available to backorder	Cover	£1.55 £1.29
29	MO125160059/0 Available to backorder	Spacer	£7.52 £6.27
30	MO118399086/0 Available to backorder	Electromagnetic Clutch	£348.22 £290.18
31	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
41	MO118401026/0 Available to backorder	Hydrostatic Transmission - Lxht20	£751.90 £626.58
42	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
44	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
51	MO112154510/0 In stock	Nut	£1.55 £1.29
52	MO325318253/0 Available to backorder	Lever	£4.78 £3.98
53	MO112791213/1 In stock	Screw	£1.55 £1.29
54	MO112523040/0 In stock	Washer	£1.49 £1.24
55	MO112293201/0 In stock	Nut	£1.69 £1.41
56	MO382785199/0 Available to backorder	Support	£26.26 £21.88
57	MO112691700/0 In stock	Screw	£1.82 £1.52
59	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
60	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
61	MO382394853/0LC Available to backorder	Switch Ass.Y	£56.32 £46.93
62	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
63	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
64	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
