ESTATE 792 SE - 2024 - 2T0780481/ST2 - Stiga Ride On Mower Steering Diagram

Description

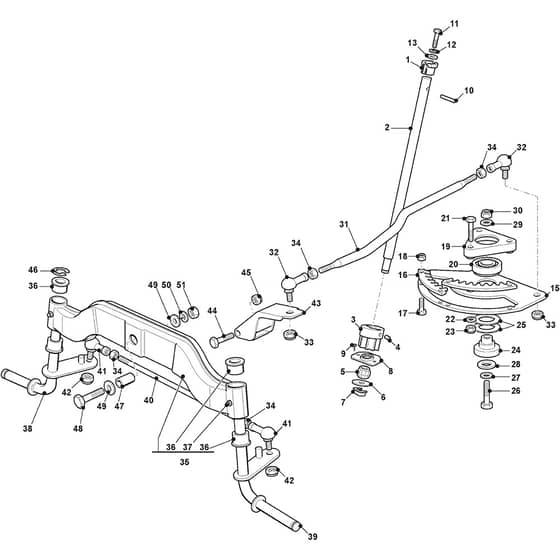

Stiga ESTATE 792 SE Parts Diagram

Product Name - ESTATE 792 SE

Model Year - 2024

Model Type - TCNS 92 Hydro

Art.N - 2T0780481/ST2

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO125520010/0 Available to backorder	Steering Column	£30.97 £25.81
3	MO125570004/0 In stock	Pinion	£10.98 £9.15
4	MO112714300/0 Available to backorder	Grub Screw	£1.55 £1.29
5	MO325743000/0 In stock	Joint	£2.68 £2.23
6	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
7	MO112436030/0 In stock	Plate	£1.82 £1.52
8	MO325785213/1 Available to backorder	Support	£2.40 £2.00
9	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
10	MO112620250/0 Available to backorder	Pin	£1.55 £1.29
12	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
15	MO325735523/2 Available to backorder	Steering Shaft	£40.82 £34.02
16	MO325150000/0 Available to backorder	Steering Quadrant	£7.02 £5.85
17	MO112791213/1 In stock	Screw	£1.55 £1.29
18	MO112154510/0 In stock	Nut	£1.55 £1.29
19	MO325774453/0 Available to backorder	Clamp	£24.22 £20.18
20	MO119216047/0 In stock	Bearing	£15.78 £13.15
21	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
22	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
23	MO112155000/0 In stock	Nut	£1.55 £1.29
24	MO125510120/0 Available to backorder	Support	£10.84 £9.03
25	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
28	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
29	MO112523080/0 In stock	Washer	£1.55 £1.29
31	MO125033003/1 Available to backorder	Steering Rod	£39.42 £32.85
32	MO122746609/0 Available to backorder	Joint	£21.83 £18.19
34	MO112295200/0 In stock	Nut	£1.40 £1.17
36	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
37	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
38	MO382230361/1 Available to backorder	Right Stub Axle	£38.00 £31.67
39	MO382230359/1 Available to backorder	Left Stub Axle	£43.64 £36.37
40	MO382820007/1 Available to backorder	Tie Rod	£52.57 £43.81
41	MO122746616/0 Available to backorder	Joint	£29.56 £24.63
43	MO382318185/0 Available to backorder	Lever Ass.Y	£24.36 £20.30
44	MO112692395/2 In stock	Screw	£3.24 £2.70
45	MO112156602/0 In stock	Nut	£1.40 £1.17
46	MO112001000/0 Available to backorder	Circlip Ø15	£1.82 £1.52
47	MO125160016/1 Available to backorder	Spacer	£6.20 £5.17
48	MO112692695/0 Available to backorder	Screw	£1.55 £1.29
49	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
50	MO112587100/0 Available to backorder	Grower	£1.55 £1.29
51	MO112295300/0 Available to backorder	Hexagon Nut M12	£1.55 £1.29
