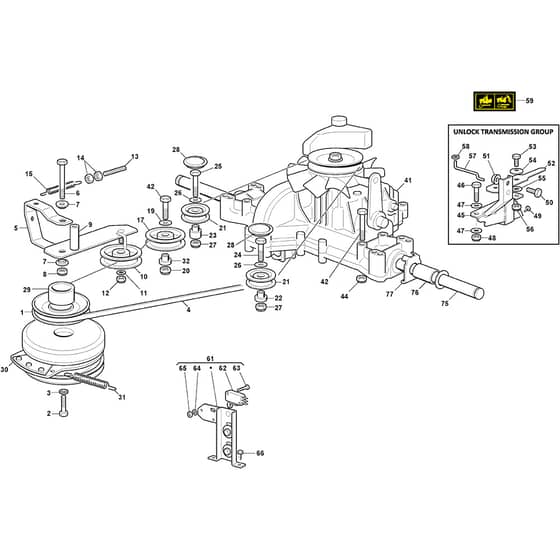

ESTATE 792 - 2022-2024 - 2T0780481/ST1P - Stiga Ride On Mower TT Transmission Diagram

Description

Stiga ESTATE 792 Parts Diagram

Product Name - ESTATE 792

Model Year - 2022-2024

Model Type - TCNS 92 Hydro

Art.N - 2T0780481/ST1P

Engine Model - ST 500

	Part No.	Details
1	MO125601566/1 Available to backorder	Pulley	£30.70 £25.58
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
4	MO135062020/1 In stock	Trapezoidal Belt	£38.77 £32.31
5	MO382318165/2 Available to backorder	Lever	£27.76 £23.13
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 Available to backorder	Bushing	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.66 £21.38
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
17	MO325601599/0 In stock	Pulley	£19.18 £15.98
21	MO325601570/1 In stock	Pulley	£24.37 £20.31
22	MO125160030/2 Available to backorder	Left Spacer	£6.46 £5.38
23	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
25	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
26	MO112523060/0 In stock	Washer	£1.55 £1.29
28	MO125109521/1 Available to backorder	Cover	£1.63 £1.36
29	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
30	MO118399077/1 In stock	Electromagnetic Clutch	£293.10 £244.25
31	MO125430210/1 Available to backorder	Brake Spring	£2.82 £2.35
32	MO125160056/0 Available to backorder	Spacer	£4.64 £3.87
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
44	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
45	MO382785109/1 Available to backorder	Support	£19.98 £16.65
46	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
47	MO112521350/0 In stock	Washer	£1.55 £1.29
48	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
50	MO112792611/0 In stock	Screw	£1.55 £1.29
51	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
52	MO325318157/0 Available to backorder	Lever	£5.34 £4.45
53	MO112793102/0 In stock	Screw	£1.55 £1.29
54	MO112369500/0 In stock	Elastic Washer	£1.39 £1.16
55	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
57	MO125033033/1 Available to backorder	Rod	£2.11 £1.76
58	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
59	MO114370818/0 Available to backorder	Transmission Unlock Label	£2.24 £1.87
61	MO382394853/0LC Available to backorder	Switch Ass.Y	£56.32 £46.93
62	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
