ESTATE 792 - 2022-2024 - 2T0780481/ST1P - Stiga Ride On Mower Fuel Pump Diagram

Name: ESTATE 792 - 2022-2024 - 2T0780481/ST1P - Stiga Ride On Mower Fuel Pump Diagram
SKU: estate_792_2t0780481_st1p_fuel_pump-group
Price: 1.17 GBP
Availability: InStock

Part No. estate_792_2t0780481_st1p_fuel_pump-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

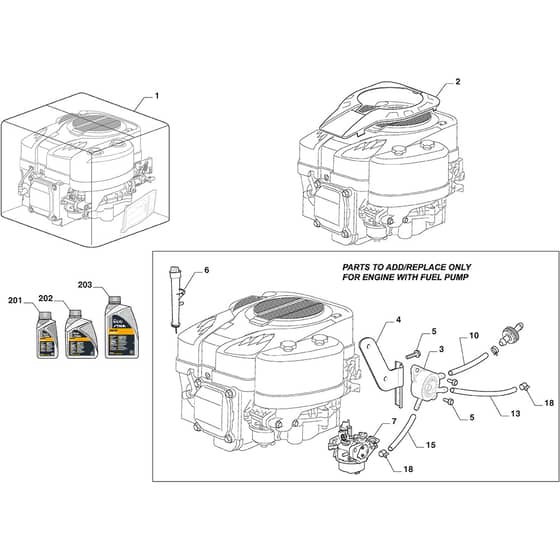

ESTATE 792 - 2022-2024 - 2T0780481/ST1P - Stiga Ride On Mower Fuel Pump Diagram

Description

Stiga ESTATE 792 Parts Diagram

Product Name - ESTATE 792

Model Year - 2022-2024

Model Type - TCNS 92 Hydro

Art.N - 2T0780481/ST1P

Engine Model - ST 500

	Part No.	Details
2	MO325055001/0 Available to backorder	Cover Ring. Yellow	£13.44 £11.20
2	MO325055002/0 Available to backorder	Hood. Black	£13.44 £11.20
3	MO118551578/0 Available to backorder	Fuel Pump	£61.93 £51.61
4	MO118550348/1 Available to backorder	Fuel Pump Stifferning	£24.37 £20.31
5	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
6	MO118550444/1 Available to backorder	Oil Filler Assy	£23.81 £19.84
7	MO118552514/0 Available to backorder	Carburettor	£63.30 £52.75
10	MO118552506/0 Available to backorder	Fuel Pipe	£6.90 £5.75
15	MO118552507/0 Available to backorder	Fuel Pipe	£9.58 £7.98
18	MO118552508/0 Available to backorder	Clamp. Fuel Line	£2.24 £1.87
201	MO1111-9237-01 In stock	Engine Oil. 10W-30 - 0.6 L	£6.91 £5.76
201	MO1111-9234-01 In stock	Engine Oil. Sae 30 - 0.6 L	£6.64 £5.53
202	MO1111-9235-01 In stock	Engine Oil. Sae 30 - 1 L	£9.23 £7.69
203	MO1111-9238-01 In stock	Engine Oil. 10W-30 - 1.4 L	£13.57 £11.31
203	MO1111-9236-01 Available to backorder	Engine Oil. Sae 30 - 1.4 L	£11.82 £9.85
